China Aluminum Alloy Fixed Pilot Chair TR-002:

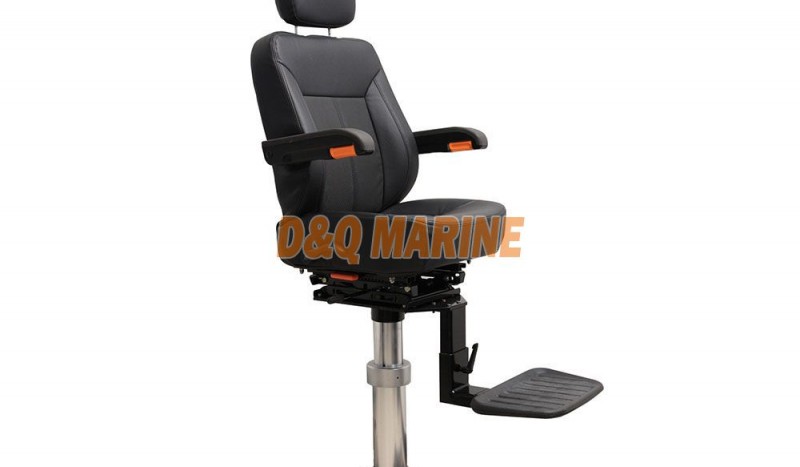

Pilot Chair is the seat/chair in which the pilot sits in the front of the wheelhouse console. TR-002 is made of aluminium alloy.

Features:

1.Ergonomic design;
2.Adjustable backrest and headrest;
3.Seat height can be angle adjusted;
4.Seat can move back and forth;
5.Folding / angle-adjustable comfortable seat armrest;
6.Seat can rotate 360 degrees, multi-point positioning;
7.Foot rest height adjustable / folding;
8.Column can be vertically lifted and descended.

Material:

1.Lifting column is the synthesis of Aluminum alloy and stainless steel;

2.The function components of seat lifting and tilting, moving back and forth, back angle adjusting are in steel structure.

3. The seat back and the seat cushion adopts the steel inner core and PU cold foam forming disposable sponge synthesis, outsourced by leather or fabric;

4. Pedal plate is with steel inner core and rubber.

5. pneumatic rod of pneumatic lifting core components is Stabilus imported from Germany.

Function Data:

1.Upper part of the seat can be moved back and forth of 120mm,height adjustment 60mm, seat inclination angle range of ±12°;

2. Seat backrest with adjustable angle of 85°-150°, the headrest adjusted up and down 50mm, handrest multi-point positioning control;

3. The seat pneumatic lifting regulating range 0-150mm；

4.The seat can rotate 360° and locked ,4-point positioning control;

5. Seat pedal can rotate 90° and regression, upper and lower position adjusting range of 0-50mm;

6.Seat can bear more than 150FT.LB torsion, reaches AD grade standard;
