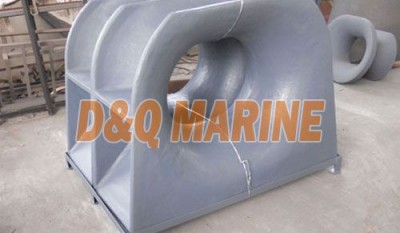

EU Type Chock:
EU Type Chock
Product Description:
We provide marine chocks in a wide variety of sizes and styles,our product can get approval of main classification society like ABS,LR,BV,DNV&GL,CCS etc.
Drawing:
Size Chart:
| Product No. | Dimension(mm) | Mass(kgs) | |||||
| A | B | C | D | E | H | ||
| DME-001 | 315 | 250 | 815 | 620 | 365 | 380 | 230 |
| DME-002 | 425 | 280 | 1075 | 785 | 450 | 500 | 378 |
| DME-003 | 500 | 400 | 1340 | 900 | 506 | 560 | 608 |
| DME-004 | 500 | 400 | 1238 | 840 | 467 | 450 | 500 |
| DME-005 | 600 | 315 | 1360 | 865 | 507 | 560 | 598 |
| DME-006 | 600 | 450 | 1360 | 1000 | 575 | 560 | 820 |
| DME-007 | 600 | 450 | 1560 | 1200 | 675 | 760 | 1200 |
| DME-008 | 800 | 600 | 1700 | 1160 | 640 | 580 | 1430 |
