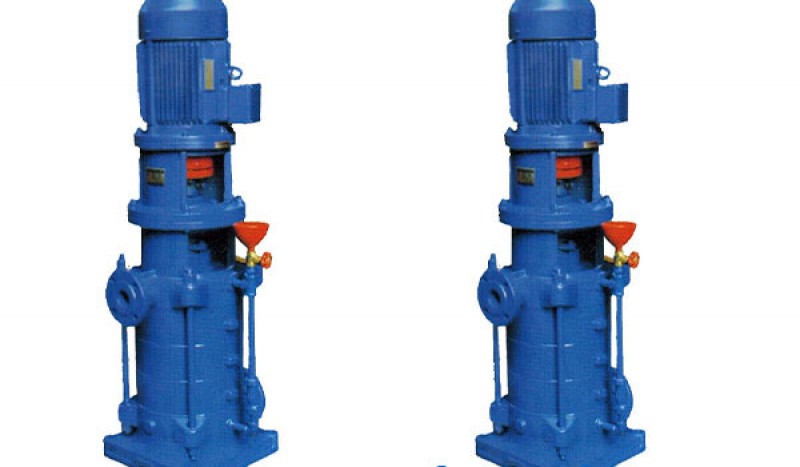

DL DLR Series Vertical Multistage Centrifugal Pump
China DL DLR Series Vertical Multistage Centrifugal Pump:
DL type vertical multistage centrifugal pump is designed and manufactured on the basis of horizontal multistage centrifugal pump.The pump inlet and outlet are divided into upper and lower structure, the user can rotate the inlet and outlet direction from the vertical point according to the actual situation in the installation of four positions.The pump shaft and the motor are in the same horizontal line. Mechanical seal device is adopted for sealing and low noise bearing is adopted for bearing. Therefore, the whole machine has low noise and small vibration during operation, which greatly improves the operating environment and service life.It is characterized by small floor area, high lift, easy installation and maintenance.Apply to transfer temperature under 90 ℃ water or physical and chemical properties similar to water in the liquid.
DL DLR Series Vertical Multistage Centrifugal Pump
Main Technical Data
| Model |
Capacity m³/h |
Head m |
Rev speed r/min |
Motor power KW |
| 40DL | 6.2 | 23.6 | 1450 | 1.5 |
| 50DL | 12.6 | 24.4 | 1450 | 3 |
| 65DL | 30 | 32 | 1450 | 5.5 |
| 80DL | 50 | 40 | 1450 | 11 |
| 100DL | 100 | 40 | 1450 | 22 |
| 125DL | 108 | 60 | 1450 | 18.5 |
| 150DL | 160 | 75 | 1450 | 37 |
| 200DL | 300 | 40 | 1450 | 55 |
Packing and Delivery：
1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.
2. Fast Delivery, delivery time can negotiate when order.
How to Order?
1. Please inform us the model, type or size you need.
2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
