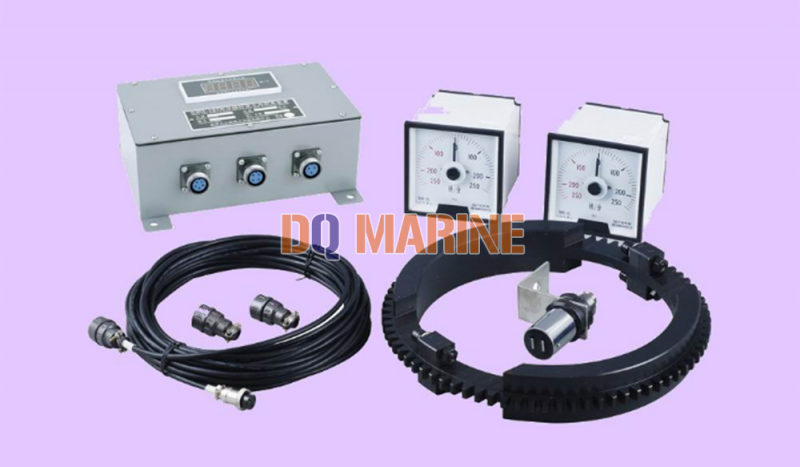

CWZ-101W Stern Shaft Speed Direction Measuring System Introduction

CWZ-101W stern shaft speed direction measuring system is used for ship stern shaft (center shaft) speed and direction measuring, can indicate multichannel.

This device with good performance and reliable, easy to install, nee design circuit, automatically detect the speed direction of ship stern shaft, and with digital display. Compact structure, long service life, reliable quality.

Can connect with 2~ 10 double-direction pointer tachometer, Match with 45C3-V, ZZ3-4, F96-DC, ZZ3-1 and other tachometers, and the VDR signal is available.

CWZ-101W Main Technical Parameter

Power supply: DC 24V ± 20% (or AC 220V)

Measuring range: 0 ± 600 r/min (0 ± 200, 0 ± 250, 0 ± 300, 0 ± 400, 0 ± 500 r/min optional)

Output voltage: 0 ± 10V

Operation environment: Environment temperature -20~+60℃，relative temperature ≤98%
