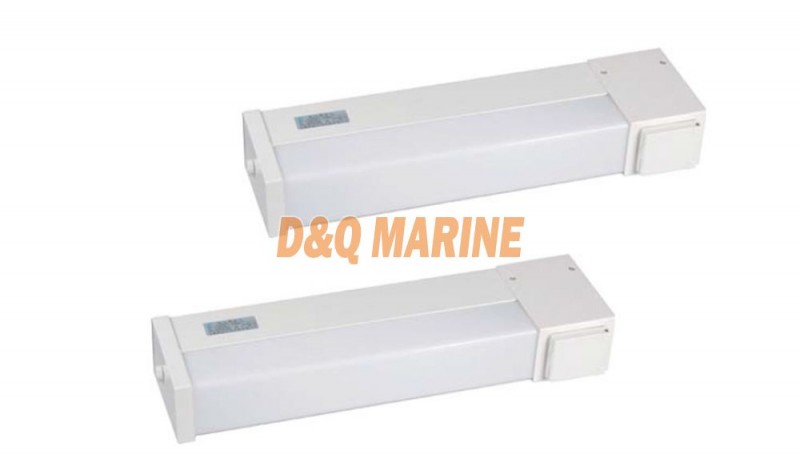

ZYB18-08/10/15/20 Fluorescent Mirror Light
The scope of application
The products are designed for illumination as mirror light at the passage and moist place such as laundry room or washing room, bathroom and rest room for etc.
Products feature
1 .The shell of light is made of good quality aluminum material and the surface be coated by white acid epoxy polyester powder coating.
2. The shade adopt milk white PC by compression molding with the feature of non-discolor, good toughness, soft light and prefect light transmission.
3. Fixed the shade and base by ABS end plate and screw, delicate in appearance, convenient to take off for service.
4.Cable outside diameter isΦ8～Φ10mm
Adopt standard and product certification
1. Conform to standard of IEC60598-1-2008.
2. Conform to RULES FOR CLASSIFICATION OF SEA-GOING STEEL SHIPS.
Installation
ZYB18-08/10/15/20 Fluorescent Mirror Light Specification
| Type | ZYB18-08 | ZYB18-10 | ZYB18-15 | ZYB18-20 |
| L(mm) | 427 | 457 | 537 | 682 |
| L1(mm) | 192 | 350 | ||
| Power | 1*8W | 1*10W | 1*15W | 1*20W |
| Weight(kg) | 2.1 | 2.4 | 3.2 | 5.1 |
| Voltage/Frequency | 110V/60HZ,220V/60HZ,220V/50HZ | |||
| Lamp Holder | G5 | G13 | ||
| Protection Class | IP34 | |||
