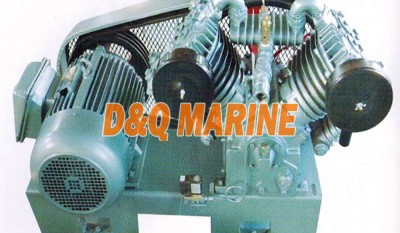

CVF Marine Low Pressure Air Compressor

Reliable marine equipment supplied with technical support, quality control and worldwide delivery.

Loading product images...

Category: Marine Low Pressure Air-cooled Series Air Compressor

Certificate: ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS

FOB Price: Get Latest Price Now

Warranty: 12 Months unless specified otherwise

Place of Origin: China

We can supply according to your requirement.

1.Rating Pressure: 1.0 Mpa
2.Displacement capacity: 60-120 m3/h
3.Rotating Speed: 650-750 rpm

4.Power: Electric Motor

5.Warranty: one year

Model	Type	Displacement capacity	Specified Pressure	Rotating Speed	Motor Power	Weight	Overrall Size(LWH)
Model	Type	m3/h	Mpa	r/min	KW	Kg	mm
CVF-60/10	Vertical air-cooled	60	1.0	650	7.5	310	1110680820
CVF-90/10		90		720	15	410	1250600710
CVF-120/10		120		750	18.5	430	1200620850
Suitable for 0.5 cubic -1.0 cube air bottle

We will reply with quotation details within 24 hours.
