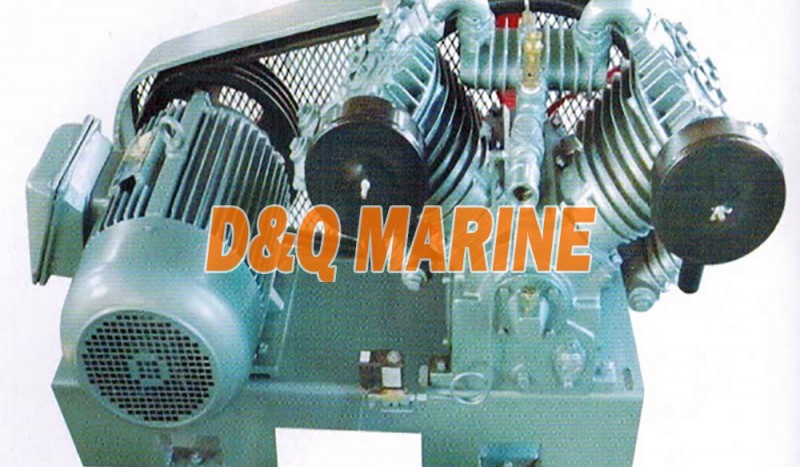

CVF Marine Low Pressure Air Compressor
Product Description
1.Rating Pressure: 1.0 Mpa2.Displacement capacity: 60-120 m3/h
3.Rotating Speed: 650-750 rpm
4.Power: Electric Motor
5.Warranty: one year
Main Technical Parameter
| Model | Type | Displacement capacity | Specified Pressure | Rotating Speed | Motor Power | Weight | Overrall Size(L*W*H) |
| m3/h | Mpa | r/min | KW | Kg | mm | ||
| CVF-60/10 | Vertical air-cooled | 60 | 1.0 | 650 | 7.5 | 310 | 1110*680*820 |
| CVF-90/10 | 90 | 720 | 15 | 410 | 1250*600*710 | ||
| CVF-120/10 | 120 | 750 | 18.5 | 430 | 1200*620*850 | ||
| Suitable for 0.5 cubic -1.0 cube air bottle | |||||||
