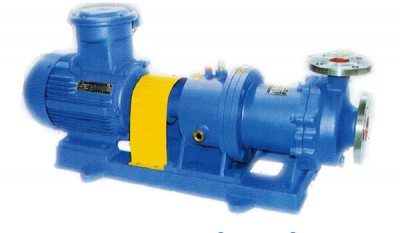

CQG Series Marine High Temperature Magnetic Drive Pump:
China CQG Series Marine High Temperature Magnetic Drive Pump:
With the modernization of petrochemical equipment in China, in order to adapt to the energy saving as the center of equipment upgrading as soon as possible, the development of AP1610 in line with the international advanced production planning products.Recently for the unit and the pump industry experts, joint research, discussion, invention reached the international advanced level of CQG high temperature magnetic drive pump series.No seal pump is the only pump with zero leakage because it has no seal.
CQG Series Marine High Temperature Magnetic Drive Pump
Main Technical Data
| Model |
Capacity L/min |
Head m |
Rev speed r/min |
Motor power KW |
| 20-12-110 | 50 | 12 | 2800 | 0.37 |
| 25-20-115 | 110 | 15 | 2800 | 1.1 |
| 32-25-115 | 110 | 15 | 2800 | 1.1 |
| 32-25-145 | 80 | 25 | 2800 | 1.1 |
| 40-32-132 | 180 | 20 | 2800 | 2.2 |
| 40-32-160 | 200 | 40 | 2800 | 4 |
| 50-40-145 | 240 | 25 | 2800 | 4 |
| 50-40-460 | 220 | 40 | 2800 | 4 |
| 50-32-200 | 130 | 50 | 2800 | 5.5 |
| 65-50-145 | 280 | 25 | 2800 | 5.5 |
| 65-50-160 | 450 | 35 | 2800 | 7.5 |
| 80-65-160 | 850 | 35 | 2800 | 11 |
| 80-50-200 | 850 | 50 | 2800 | 15 |
| 100-80-160 | 1650 | 35 | 2800 | 18.5 |
| 100-65-200 | 1650 | 50 | 2800 | 22 |
Packing and Delivery：
1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.
2. Fast Delivery, delivery time can negotiate when order.
How to Order?
1. Please inform us the model, type or size you need.
2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
