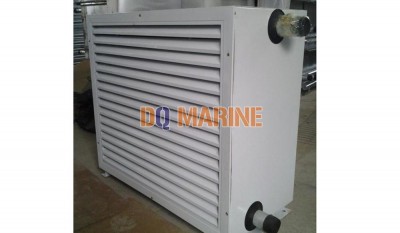

CNFS Marine Hot Water Heating Air Fan Unit
Category:
Marine Air Conditioner
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
CNFS Marine Hot Water Heating Air Fan Unit:
Description:

CNFS Marine hot-water heating unit, the heating unit, with90℃hot water as the heating medium, is a critical equipment in main engine room, auxiliary machinery compartment and other compartments. When the ship is pulled in and the ambient temperature is close to 0℃, the unit must be started to keep the temperature in each compartment above 0℃to avoid the damage of the equipment and pipelines inside due to low temperature and facilitate the preparation for next voyage of the ship.

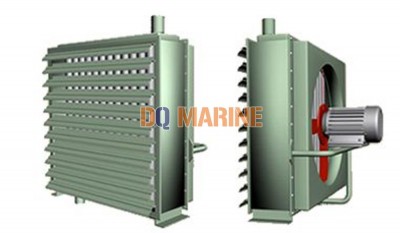

The equipment is composed of heat radiation coil pipe and axial fan.

Technical Data:

Type CNFSZ324 CNFSZ334 CNFSZ524 CNFSZ534
Heating Capacity KW 15.81 18.72 28.37 41.28
Heating water temp.(In/Out) 90/70 90/70 90/70 90/70
Heating water consumption Kg/h 678 805 1220 1775
Water press. Drop 326 340 1280 2000
Air flow m3/h 2350 2330 5050 4980
Supply air temp.℃ 37.3 41.6 33.6 42.5
Fan motor power kw 0.2 0.2 0.37 0.37
Noise dB(A) ≤63 ≤63 ≤70 ≤70
Weight Kg 33 39 50 60
Dimension L(mm) 600 600 750 750
L1(mm) 490 490 590 590
H(mm) 600 600 750 750
W(mm) 450 450 550 550
B(mm) 240 240 280 280
B1(mm) 140 140 215 215
DN(mm) 25 25 32 32
