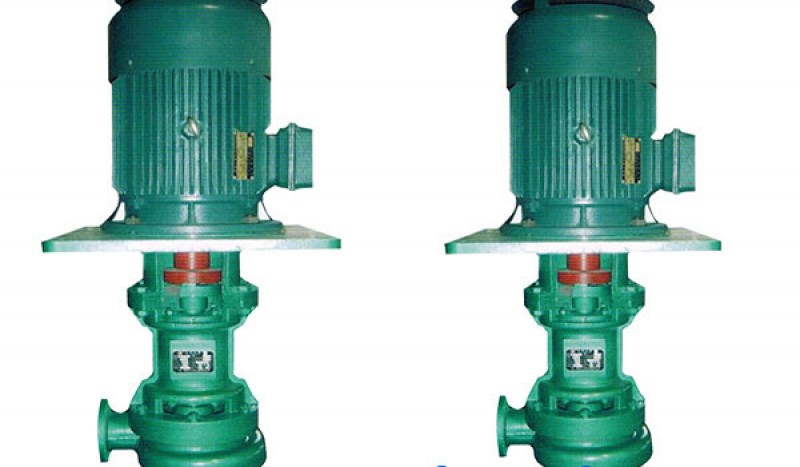

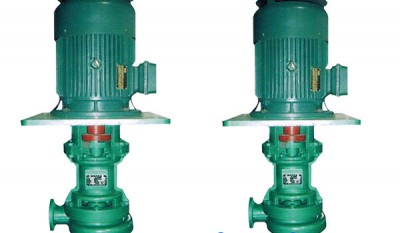

CL Series Main Vertical Centrifugal pump
China CL Series Main Vertical Centrifugal pump:
CL series marine vertical centrifugal pump can be used to deliver ballast tank water of boats and ships, or to cool,control fire. They can also convey sea water, fresh water and other liquids that do not exceed 70℃ and do not have obvious corrosion.
Construction of pump
Main Technical Data
| Model |
Flow rate Q m³/h |
Lift H (m) |
Rev speed r/min |
Motor power (KW) |
| 40CL-42 | 15 | 42 | 2890 | 4 |
| 40CL-42A | 12 | 40 | 2880 | 3 |
| 40CL-50 | 10 | 50 | 2890 | 4 |
| 40CL-50A | 8 | 45 | 2880 | 3 |
| 40CL-60 | 10 | 60 | 2890 | 4 |
| 40CL-60A | 8 | 55 | 2880 | 3 |
| 50CL-30 | 20 | 30 | 2890 | 4 |
| 50CL-30A | 18 | 24.5 | 2880 | 3 |
| 65CL-45 | 30 | 45 | 2900 | 7.5 |
| 65CL-45A | 27 | 37 | 2900 | 5.5 |
| 65CL-65 | 25 | 65 | 2930 | 15 |
| 65CL-65A | 21 | 58 | 2930 | 11 |
| 80CL-30 | 50 | 30 | 2900 | 7.5 |
| 80CL-30A | 45 | 25 | 2900 | 5.5 |
| 80CL-35 | 50 | 35 | 2900 | 7.5 |
| 80CL-65 | 50 | 65 | 2930 | 18.5 |
| 80CL-65A | 46 | 56 | 2930 | 15 |
| 80CL-65B | 40 | 50 | 2930 | 11 |
| 100CL-30 | 100 | 30 | 2930 | 15 |
| 100CL-30A | 90 | 24.5 | 2930 | 11 |
| 100CL-45 | 100 | 45 | 2940 | 22 |
|
Also have bigger pumps, pls contact us for more information. |
||||
Performation of CL Series Main Vertical Centrifugal pump
External dimension for installation
Packing and Delivery：
1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.
2. Fast Delivery, delivery time can negotiate when order.
How to Order?
1. Please inform us the model, type or size you need.
2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
