Externa Rotor Centrifugal Ventilator:
China Externa Rotor Centrifugal Ventilator:
The series fan is composed of the external rotor single-phase capacitor run asynchronous motor,housing,impeller and mounting bracket.With the advantage of large wind volume,little vibration,low noise and compact structure and so on.CDR series using same size of air in-outlet and duct coaxial mounting,greatly save the cost forpipline deign and installation.It is widely used in forcing ventilation of ground control facilities and electronic equipment,also can be used in dusing pipeline,advertising inflatable model,environment protection,pollution and so on.
Specification:
| model | voltage(V) | frequency(Hz) | current(A) | power(W) | speed(r/min) | volume(m³/h) | statuc pressure(Pa) | noise dB(A) |
| CDR2E-100 | 220 | 50 | 0.32 | 75 | 2650 | 250 | 350 | 47 |
| CDR2E-125 | 220 | 50 | 0.36 | 80 | 2650 | 275 | 390 | 47 |
| CDR2E-150 | 220 | 50 | 0.65 | 140 | 2650 | 370 | 400 | 52 |
| CDR2E-160 | 220 | 50 | 0.68 | 145 | 2650 | 590 | 420 | 52 |
| CDR2E-200 | 220 | 50 | 0.8 | 180 | 2550 | 800 | 550 | 53 |
| CDR2E-250 | 220 | 50 | 0.85 | 190 | 2550 | 850 | 570 | 55 |
| CDR2E-315 | 220 | 50 | 1.2 | 270 | 2600 | 1200 | 830 | 60 |
| model | voltage(V) | frequency(Hz) | current(A) | power(W) | speed(r/min) | volume(m³/h) | statuc pressure(Pa) | noise dB(A) |
| FLJ-130J1 | 220 | 50 | 0.39 | 85 | 2200 | 3.6 | 280 | 70 |
| FLJ-130J5 | 220 | 50 | 0.55 | 120 | 2600 | 5.5 | 350 | 72 |
| FLJ-150J17-A | 220 | 50 | 0.82 | 180 | 2500 | 7 | 400 | 72 |
| FLJ-150J17 | 220 | 50 | 1.12 | 240 | 2600 | 9.5 | 450 | 75 |
| FLJ-150J7 | 220 | 50 | 1.52 | 320 | 2800 | 12.5 | 450 | 76 |
| FLJ-170J3 | 220 | 50 | 1.82 | 400 | 2800 | 11 | 600 | 78 |
| FLJ-170J7 | 220 | 50 | 2.28 | 500 | 2800 | 15 | 630 | 80 |

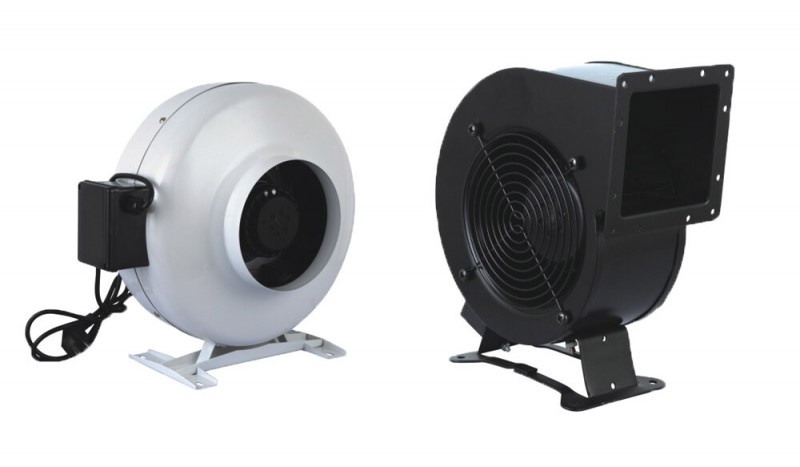

Picture：
Product Advantage:
1.Satisfactory Quality2.Competitive Price
3.Prompt Delivery
4.7x24 hours service
Packing and Delivery：
1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.2. Fast Delivery, delivery time can negotiate when order.
How to Order?
1. Please inform us the model, type or size you need.2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
