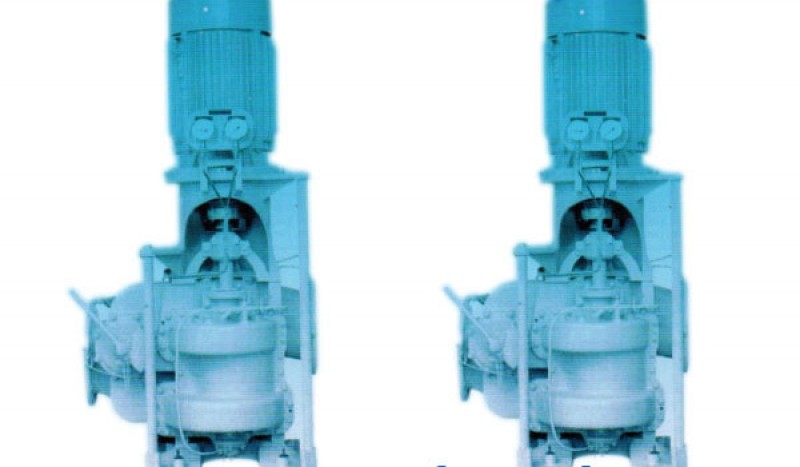

CCBL Series Marine Vertical Centrifugal Pump:
China CCBL Series Marine Vertical Centrifugal Pump:
CCBL series marine series-parallel connection vertical centrifugal pump of the performance indicators to meet the CCS"with the construction of steel ships entry-level norms",in line with MSC,98(73) resolutions, FSSⅡ-Z(international fire safety system rules) requirements.
CCBL series marine vertical centrifugal pump is a kind of series and parallel both to meet the large flow of work and also to accommodate the work of multi-purpose high-lift pumps for cooling the ship,ballast and other low-voltage systems also meet the fire water and washing,deck high-pressure water system which can transport 70℃ below the sea water or fresh water.
CCBL series pump diameter range of 150mm-350mm, flow rate range of 100m³/h-2000m³/h,head range 20m-100m.
Construction of pump
Main Technical Data
| Model |
Flow rate Q m³/h |
Lift H (m) |
Rev speed r/min |
Motor power (KW) |
| CCBL-150 | 180/55 | 24/78 | 1450 | 22 |
| CCBL-150A | 175/52 | 22/74 | 1450 | 18.5 |
| CCBL-150B | 170/48 | 20/70 | 1450 | 15 |
| CCBL-150C | 165/45 | 18/66 | 1450 | 15 |
| CCBL-200 | 320/100 | 24/78 | 1450 | 37 |
| CCBL-200A | 310/100 | 22/74 | 1450 | 30 |
| CCBL-200B | 310/95 | 20/70 | 1450 | 30 |
| CCBL-200C | 300/90 | 18/66 | 1450 | 30 |
| CCBL-250 | 290/85 | 24/78 | 1450 | 55 |
| CCBL-250A | 480/150 | 22/74 | 1450 | 55 |
| CCBL-250B | 464/145 | 20/70 | 1450 | 45 |
| CCBL-250C | 448/140 | 18/66 | 1450 | 45 |
| CCBL-300 | 432/135 | 24/78 | 1450 | 75 |
| CCBL-300A | 780/240 | 22/74 | 1450 | 75 |
| CCBL-300B | 755/232 | 20/70 | 1450 | 75 |
| CCBL-300C | 730/224 | 18/66 | 1450 | 55 |
| CCBL-350 | 705/216 | 24/78 | 1450 | 132 |
| CCBL-350A | 1200/370 | 22/74 | 1450 | 110 |
| CCBL-350B | 1160/358 | 20/70 | 1450 | 90 |
| CCBL-350C | 1120/346 | 18/66 | 1450 | 90 |
| Also have bigger pumps, pls contact us for more information. | ||||
External installation dimension
Packing and Delivery：
1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.
2. Fast Delivery, delivery time can negotiate when order.
How to Order?
1. Please inform us the model, type or size you need.
2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
