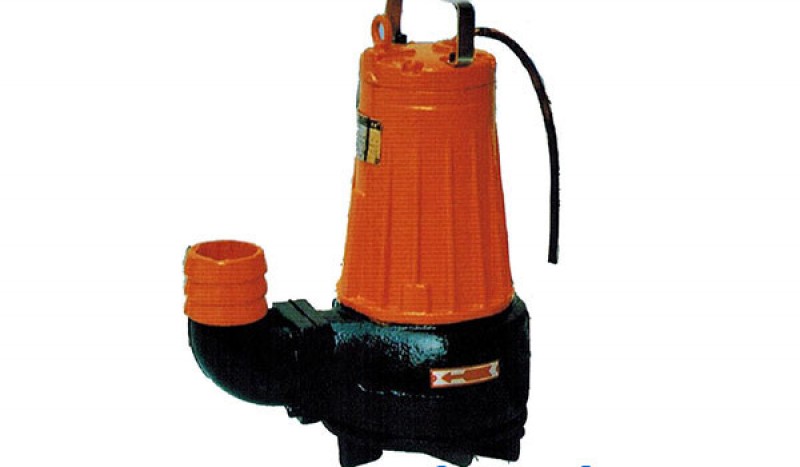

AS Series Submerged Sewage Pump
China AS Series Submerged Sewage Pump:
Summarize:
AS series submersible sewage pump adopts advanced technology of ABS company in Germany, which is especially suitable for conveying liquids containing hard solids, fibers and especially dirty, sticky and slippery liquids.All AS pumps are equipped with an adjusted tearing mechanism, which can tear the long fiber, bag, grass, cloth, etc. out of sewage.Therefore, working in sewage will not clog, the operation is extremely reliable.
AS Series Submerged Sewage Pump
Main Technical Data
| Model |
Capacity m³/h |
Head m |
Rev speed r/min |
Motor power KW |
| AS10-2W/CB | 15 | 4 | 2850 | 1.1 |
| AS10-2CB | 15 | 4.5 | 2850 | 1.1 |
| AS16-2CB | 29 | 7.6 | 2850 | 1.5 |
| AS30-2CB | 42 | 11 | 2850 | 3 |
| AS55-2CB | 45 | 13 | 2900 | 5.5 |
| AS55-4CB | 100 | 7.5 | 1450 | 5.5 |
| AS75-2CB | 60 | 18 | 2900 | 7.5 |
| AS75-4CB | 145 | 10 | 1450 | 7.5 |
| AV14-4 | 22 | 5.8 | 1450 | 1.5 |
| AV55-2 | 30 | 20 | 2900 | 5.5 |
| AV75-2 | 30 | 25 | 2900 | 7.5 |
