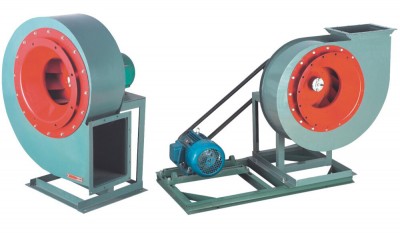

Centrifugal Dust Extraction Fan
Category:
Marine Fan
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
Centrifugal Dust Extraction Fan:
China Centrifugal Dust Extraction Fan:

The cetrifugal dust extraction fans of C6-48 is one jointly designed infan industry dedicated for dust extraction.This series of fans,characterixzed with anti-static and resistant to wear,is appropriately used for exhaust gases containing dust,wood-quality crumb,fine crushing fiber,etc.(if hard particles are mixed,dust extraction device shall be equipped in the front of fans),as well as for commonly ventilating.

Specification:

machine(No) rotation speed(r/min) matching motor(kW) volume flow(m³/h) total pressure(Pa)
3.15A 2900 2.2 1369~3060 1587~1163
1450 0.55 684~1530 397~291
4A 2900 5.5 2748~6374 2594~1859
1450 1.1 2582~3187 553~465
5A 1450 3 4401~6252 918~729
960 0.75 1705~4139 449~317
6.3A 1450 7.5 10091~12505 1369~1150
960 2.2 3411~8279 711~504
3.15A 1600 0.75 755~1688 483~354
1800 0.75 850~1899 611~448
2000 0.75 944~2110 755~553
2240 1.1 1057~2363 948~694
2500 1.1 1181~1909 1181~1070
1.5 2152~2637 1015~865
2800 1.5 1322~2138 1483~1344
2.2 2410~2954 1274~1086
3150 2.2 1487~2711 1880~1615
3 3017~3323 1507~1376

machine(No) rotation speed(r/min) matching motor(kW) volume flow(m³/h) total pressure(Pa)
4C 1250 0.75 1184~2748 481~345
1400 0.75 1326~3077 603~433
1600 1.1 1516~2850 789~672
1.5 3183~3517 624~565
1800 1.5 1705~3957 999~716
2000 2.2 1895~4396 1234~884
2240 2.2 2122~2589 1550~1505
3 3056~4924 1451~1110
2500 3 2369~3411 1933~1810
4 3932~5495 1737~1384
5C 1000 0.75 1776~3035 486~436
1.1 3479~4312 410~344
1250 1.5 2221~4349 460~641
2.2 4927~5390 592~538
1400 2.2 2487~6036 954~675
1600 3 2842~6899 1247~882
1800 4 3198~6262 1580~1332
5.5 7095~7761 1230~1118
2000 5.5 3553~6958 1953~1647
7.5 4883~8623 1521~1381
6.3C 800 1.1 2843~4116 494~464
1.5 4857~6900 443~350
900 1.5 3198~4631 625~588
2.2 5464`7762 561~443
1000 2.2 3554~6071 772~693
3 6959~8625 651~547
1120 3 3980~7794 969~818
4 3831~9660 755~686
1250 4 4442~7588 1208~1085
5.5 8699~10781 1019~855
8C 630 2.2 6899~10781 494~350
710 3 4584~11126 627~444
800 3 5166~12539 797~749
4 5821~8429 716~564
900 5.5 9944~14128 4009~851
7.5 6549~12824 786~714
1000 7.5 14530~15894 1247~882
1120 7.5 7276~17660 1566~1526
11 8150~9763 1472~1108
1250 15 11799~19779 1953~1381
10C 500 4 9096~22075 508~344
630 5.5 7402~18208 807~659
710 7.5 9327~18373 1026~838
11 10510~20706 769~695
800 11 23334~25856 1034~1065
15 11843~23331 978~882
900 15 26291~29134 1653~1445
18.5 13323~23049 1349~1118
1000 18.5 26247~32776 2043~1900
22 14804~22057 1787~1381
12.5C 400 4 25610~36417 508~445
5.5 11565~20008 415~344
500 7.5 22784~28451 795~695
11 14457~25010 649~538
630 15 28480~35564 1264~1105
18.5 18215~31513 1031~855
710 22 20528~35515 1607~1405
30 40442~50501 1311~1087
800 30 23131~34465 2043~1900
37 40017~56902 1787~1381

Picture:

Product Advantage:
1.Satisfactory Quality
2.Competitive Price
3.Prompt Delivery
4.7x24 hours service
Packing and Delivery:
1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.
2. Fast Delivery, delivery time can negotiate when order.
How to Order?
1. Please inform us the model, type or size you need.
2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
