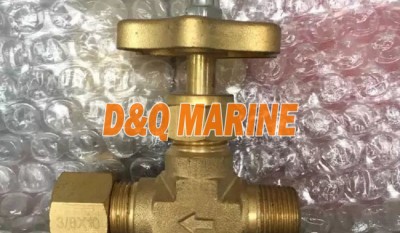

Brass Needle Valve with Ring Joint Nut and Male Thread
China Brass Needle Valve with Ring Joint Nut and Male Thread:
Brass Needle Valve is used to connect the copper tubing, control the flow of liquids or gas requiring close regulating. Made of brass rods and brass except for "O" rings.
Technical Specification:
1. Applicable temperature will be -20℃ to 100℃
2. Max Pressure: 3.43Mpa (35kgf/cm2)
3. Recommended for use at less than 80% of max load pressure at temperature between 80℃ and 100℃.
Main Size(mm):
| IMPA | Nominal Size | OD of Tube | Thread | Length | Height | |
| Ring Joint Side | Male Thread | |||||
| 752106 | 6 x 1/8 | 6 | PF-1/4 | PF-1/8 | 52 | 37 |
| 752107 | 6 x 1/4 | 6 | PF-1/4 | PF-1/4 | 53 | 37 |
| 752108 | 8 x 1/4 | 8 | PF-3/8 | PF-1/4 | 66 | 42 |
| 752109 | 10 x 3/8 | 10 | PF-3/8 | PF-3/8 | 77 | 50 |
| 752110 | 12 x 1/2 | 12 | PF-1/2 | PF-1/2 | 80 | 50 |
| 752111 | 14 x 1/2 | 14 | PF-1/2 | PF-1/2 | 81 | 50 |
