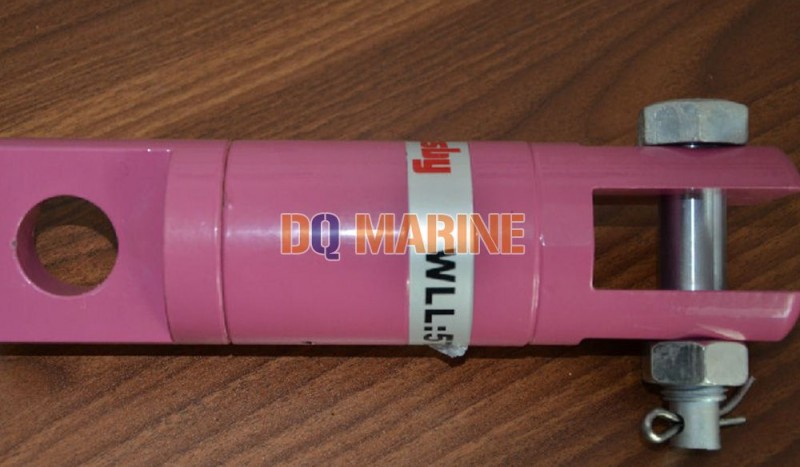

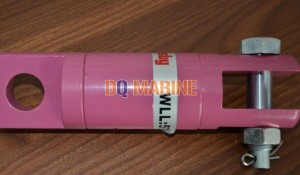

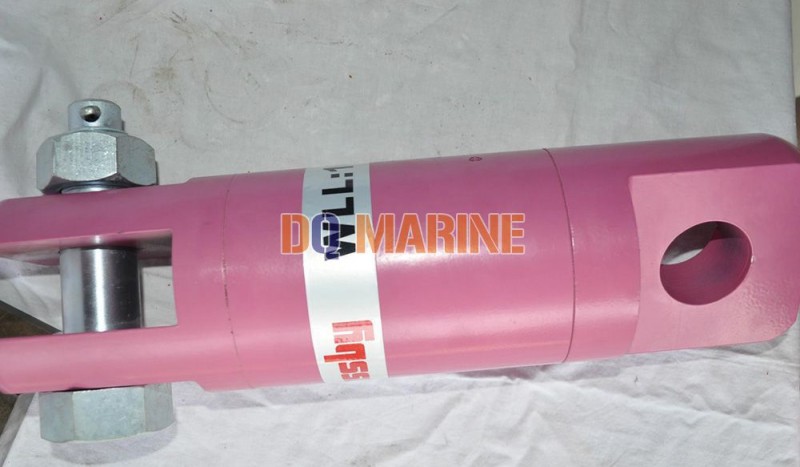

Angular Contact Bearing Swivels-OU:
Introduction
Forged super alloy steel-Quenched tempered.
Swivels are designed with a safety factor of 4:1.
Swivels are individually tested to 2 times the safe working load with certification.
Swivels are zinc plated for corrosion resistance and longer life.
Swivels are manufactured with grease fittings for superior performance.
Product Details
Angular Contact Bearing Swivels-OU sizes table
| Item No. | Size | WLL (T) | Dimensions (mm) | Weight (kg) | ||||||||||
| B | K | L | A | G | D | H | T | J | W | I | ||||
| YD-089-007 | 0.75 | 0.75 | 34 | 102 | 128 | 15 | 6 | 10 | 22 | 12 | 10 | 33.5 | 10 | 0.5 |
| YD-089-015 | 1.5 | 1.5 | 40 | 112 | 152 | 18 | 8 | 13 | 26 | 15 | 13 | 45 | 20 | 0.9 |
| YD-089-030 | 3 | 3 | 53 | 160 | 208 | 23 | 10.5 | 20 | 32 | 20 | 20 | 51 | 23 | 2.2 |
| YD-089-050 | 5 | 5 | 65 | 203 | 267 | 32 | 14 | 22 | 37 | 26 | 33 | 65 | 33 | 4.4 |
| YD-089-085 | 8.5 | 8.5 | 78 | 254 | 326 | 40 | 14 | 30 | 54 | 32 | 37 | 85 | 38 | 7.4 |
| YD-089-100 | 10 | 10 | 106 | 310 | 410 | 42 | 25 | 38 | 54 | 42 | 44 | 91 | 52 | 18 |
| YD-089-150 | 15 | 15 | 119 | 331 | 447 | 48 | 25 | 38 | 57 | 49 | 54 | 110 | 64 | 21.2 |
| YD-089-250 | 25 | 25 | 137 | 405 | 540 | 62 | 30 | 51 | 70 | 60 | 66 | 130 | 70 | 40 |
| YD-089-350 | 35 | 35 | 154 | 428 | 563 | 62 | 30 | 51 | 70 | 60 | 66 | 130 | 70 | 46.7 |
| YD-089-600 | 60 | 60 | 270 | 670 | 890 | 100 | 75 | 80 | 115 | 70 | 80 | 230 | 115 | / |
