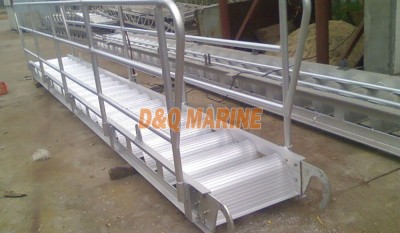

Aluminium Alloy Accommodation Ladder:

China Aluminium Alloy Accommodation Ladder:

Aluminium Alloy Accommodation Gangway is the aluminum alloy gangway with the accommodation ladder steps, the function is the same as wharf ladder, used to connect the vessel and the dock for the boarding and disembarking for personnel when various types of ships are mooring alongside a deck. One side is with the roller, another side is with the hook to hook on the deck.But the usage angle is bigger.

Technical Specification:

1. Standard: CB3116-82, JIS F2613-1796 & ISO7061-1993, GB/T14360-1993 & ISO 5488-79

2. Max usage angle: 55º

3. Load Test: 82.5KGS/step

4. The safety net can be supplied with ladder, but must be declared when inquiry.

5. All aluminium alloy parts is anodized.

6. Standard Width: 600mm (inside)

7. The handrail can be fixed or demountable.

8. The size is customerized.

Main Parts and Material:

1. Ladder Frame: Aluminium Alloy LF5

2. Handrail: Aluminum Alloy Pipe LY12

3. Rope: Nylon

4. Plate for Walking: Anti-slip Aluminum Alloy

5. Roller: Nylon

6. Hook: Aluminum Alloy or Steel
