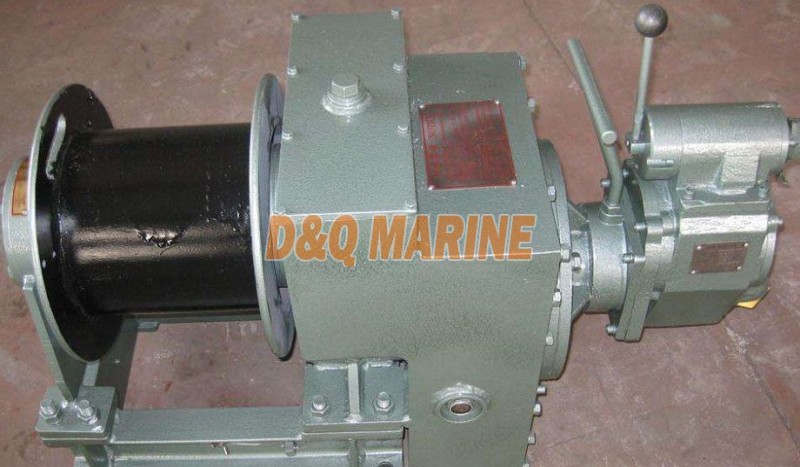

Air Winch for Accommodation Ladder
China Air Winch for Accommodation Ladder:
The Air Winch for Accommodation Ladder is a short-time working machinery mainly for hoisting and lowering the ship's accommodation ladder.
Standard: GB1392-85
Main Parts: frame, drum, gear box, air motor, handle.
Main Technical Parameters:
| Working Load | 10KN | 16KN | |
| Support Load | 30KN | 48KN | |
| Rope Dia | 13mm | 13-15mm | |
| Pneumatic Motor | Power | 3.5-5.5PS | 5.5-7PS |
| Air consumption | 3.5-5.5m3/min | 5.5-7m3/min | |
| Air pressure | 0.5-0.7Mpa | ||
| Hoist Speed | >9.75m/min | ||
Main Material:
Shaft---40Cr
Gear---40Cr
Drum---Carbon Steel Q235A
