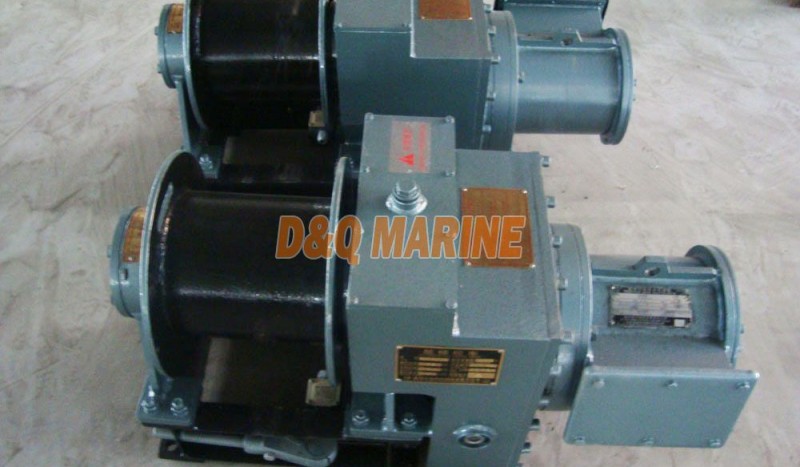

Accommodation Ladder Electric Winch
China Accommodation Ladder Electric Winch:
The electric winch is a short-time working machinery mainly for hoisting and lowering the ship's accommodation ladder.This series of accommodation ladder winch consists of flange type electric motor，reduction gear box，drum，two-way ratchet connection motor without brake.
Technical Specification:
| Working Load | 10KN | 16KN | 20KN | |
| Support Load | 30KN | 48KN | 60KN | |
| Rope Dia | 13mm | 13-15mm | 15-17.5mm | |
| Electric Motor | 380V,50Hz | 2.2KW | 3.7KW | 7.5KW |
| 440V,60Hz | 2.5KW | 4.0KW | 8.5KW | |
| Drum rope capacity | 37m | 50m | 68m | |
| Hoist Speed | 8.09m/min | 10m/min | 16m/min | |
Main Material:
Shaft---40Cr
Gear---40Cr
Reel---Carbon Steel Q235A
