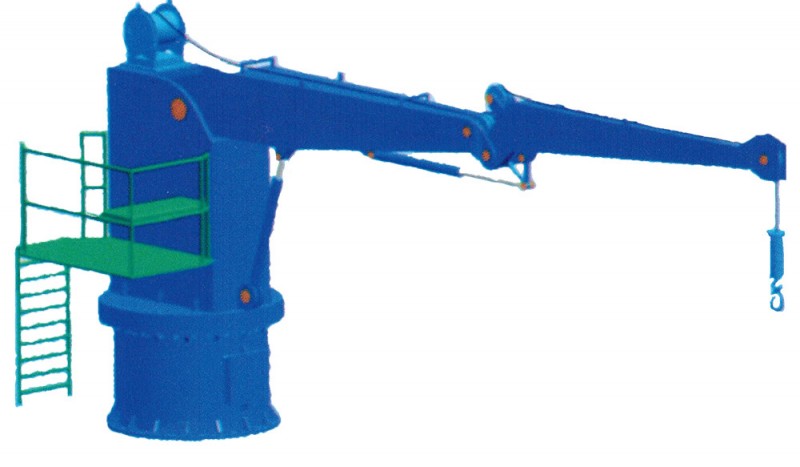

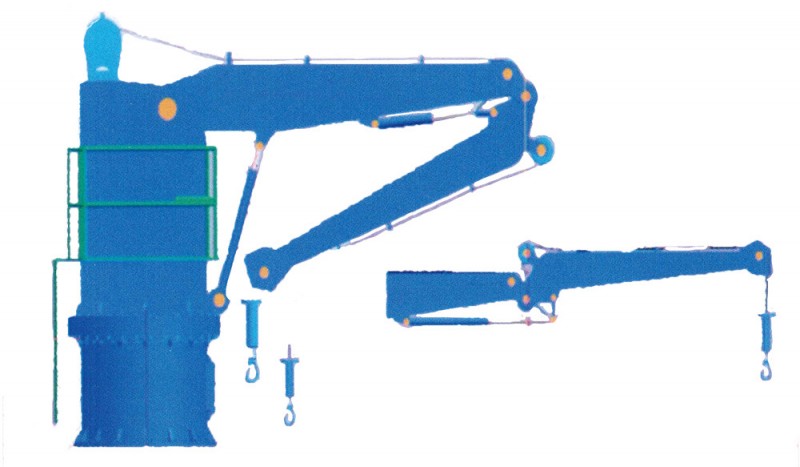

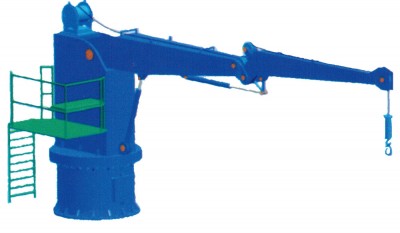

5T Marine Knuckle Boom Crane
Category:
Marine davit & crane
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
5T Marine Knuckle Boom Crane:
1-5T Marine Knuckle Boom Crane

The marine knuckle boom crane is suitable for ships with small space, especially in the offshore industry and small ships. The crane is lifted, swiveled, variable-width folding arm, and the telescopic drive is hydraulically driven. The operation is flexible, safe, reliable and has a large adjustment range.

Technical Specifications

SWL
(T)
Swing Speed
(rpm)
Hoisting Speed
(m/min)
Hoisting Height
(m)
Luffing Time
(sec.)
Motor Power
(KW)
Size
(mm)
Weight
(T)
1 0.8 15 20 55 11 1000 2500 9000 6000 1200 940 x 15 3.2
60 1000 2500 10000 6000 1200 940 x 15 3.9
2 60 15 1200 2800 10000 6000 1200 940 x 15 5.01
70 1200 2800 12000 7000 1400 940 x 15 5.6
70 1200 2850 14000 8000 1600 940 x 15 6.2
3 60 22 1200 2850 10000 6000 1200 1060x20 5.9
60 1200 2850 12000 7000 1400 1060x20 6.3
70 1200 2850 14000 8000 1600 1210x20 7.7
4 60 30 1200 3300 10000 6000 1200 1060x20 6.5
70 1200 3300 12000 7000 1400 1010x20 7.5
70 1200 3300 11000 8000 1600 1210x20 8.1
5 60 37 1200 3300 10000 6000 1200 1060x20 7.7
70 1200 3300 12000 7000 1400 1210x20 8.1
