50mm Electric Combined Windlass
44-62mm Electric Combined Windlass
The anchor windlass is mainly composed of a base, a bracket, an anchor sprocket, a brake, a sprocket, a gearbox, an electric control system (except a manual windlass), an electric windlass has an electric motor, and a hydraulic windlass has a hydraulic pumping station. The main technical indicators of the windlass include the diameter of the anchor chain, the nominal speed of the anchor, the rated load, the supporting load, several shifts, and the electric system. The installation of the anchor windlass on the ship should ensure that the wrap angle of the anchor chain and the sprocket is 117-120°.

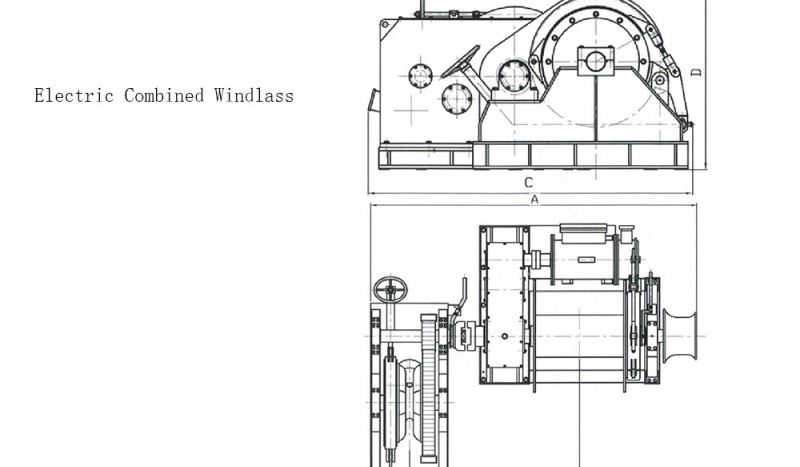

Technical specifications
| Chain Dia. (mm) | Working Load (KN) | Working Speed (m/min) | Mooring Pull (KN) | Mooring Speed (m/min) | Drum Capacity (φmm×m) | Motor Power (KW) | Dimensions(mm) | Weight (ton) | ||||
| M2 | M3 | A | B | C | D | |||||||
| 44 | 82 | 92 | 9 | 50 | 15 | 20.5×120 | 22/22/16 | 3100 | 1550 | 2800 | 1575 | 7.68 |
| 46 | 90 | 101 | 9 | 50 | 15 | 20.5×120 | 22/22/16 | 3100 | 1550 | 2800 | 1575 | 7.68 |
| 48 | 98 | 109 | 9 | 50 | 15 | 20.5×120 | 30/30/22 | 3400 | 1700 | 2900 | 1700 | 8.85 |
| 50 | 106 | 119 | 9 | 75 | 15 | 26×200 | 30/30/22 | 3400 | 1700 | 2900 | 1700 | 8.85 |
| 52 | 115 | 128 | 9 | 75 | 15 | 26×200 | 30/30/22 | 3700 | 1850 | 3175 | 1825 | 10.2 |
| 54 | 124 | 139 | 9 | 75 | 15 | 26×200 | 30/30/22 | 3700 | 1850 | 3175 | 1825 | 10.2 |
| 56 | 133 | 149 | 9 | 75 | 15 | 26×200 | 30/30/22 | 3700 | 1850 | 3175 | 1825 | 10.2 |
| 58 | 143 | 160 | 9 | 75 | 15 | 26×200 | 45/45/30 | 4000 | 2000 | 3400 | 2080 | 12.4 |
| 60 | 153 | 171 | 9 | 100 | 15 | 30×200 | 45/45/30 | 4000 | 2000 | 3400 | 2080 | 12.4 |
| 62 | 163 | 183 | 9 | 100 | 15 | 30×200 | 45/45/30 | 4000 | 2000 | 3400 | 2080 | 12.4 |
Note: Dimension B to be provided by user.
