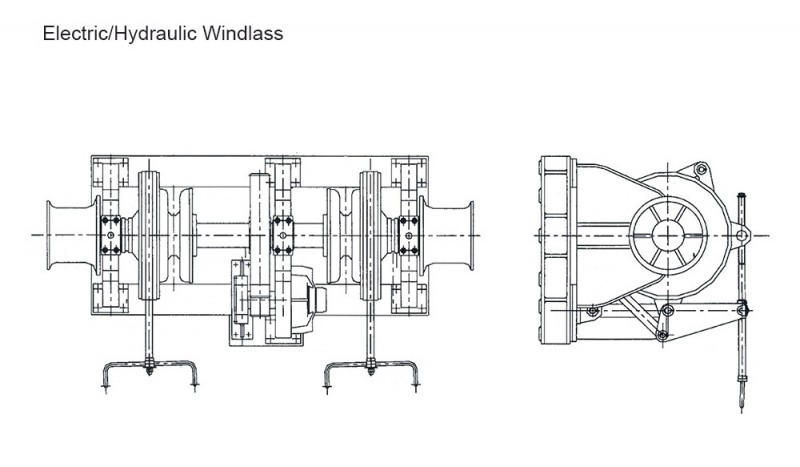

365KN Electric Windlass
125-870KN Electric Windlass
The electric windlass is installed on the main deck of the first part of the ship for anchoring and anchoring the cable. The electric windlass is a power-driven anchor machine.
Technical specifications
|
Clain Diameter (mm) |
Working Load (KN) |
Working Speed (m/min) |
Holding Speed (KN) |
Motor Power(KW) | |
| Electric | Hydraulic | ||||
| 22 | 20.6 | ≥9 | 125 | 8.5/3.5 | 7.5 |
| 24 | 24.5 | ≥9 | 149 | 8.5/3.5 | 11 |
| 26 | 28.7 | ≥9 | 175 | 8.5/3.5 | 11 |
| 28 | 33.3 | ≥9 | 202 | 11/11/7.5 | 15 |
| 30 | 38.3 | ≥9 | 231 | 11/11/7.5 | 15 |
| 32 | 43.5 | ≥9 | 261 | 16/16/11 | 22 |
| 34 | 49.1 | ≥9 | 294 | 16/16/11 | 22 |
| 36 | 55.1 | ≥9 | 329 | 16/16/11 | 22 |
| 38 | 61.4 | ≥9 | 365 | 22/22/16 | 30 |
| 40 | 68 | ≥9 | 402 | 22/22/16 | 30 |
| 42 | 75 | ≥9 | 442 | 22/22/16 | 30 |
| 44 | 82.3 | ≥9 | 483 | 30/30/22 | 37 |
| 46 | 89.9 | ≥9 | 526 | 30/30/22 | 37 |
| 48 | 97.9 | ≥9 | 570 | 30/30/22 | 37 |
| 50 | 103.3 | ≥9 | 617 | 30/30/22 | 45 |
| 52 | 114.9 | ≥9 | 661 | 30/30/22 | 45 |
| 54 | 123.9 | ≥9 | 713 | 30/30/22 | 45 |
| 56 | 133.6 | ≥9 | 764 | 45/45/30 | 55 |
| 58 | 143 | ≥9 | 816 | 45/45/30 | 55 |
| 60 | 153 | ≥9 | 870 | 45/45/30 | 55 |
Note:
1.The data of the sheet is data that when the depth of anchor ≤82.5m.
2.Design according to client request.
