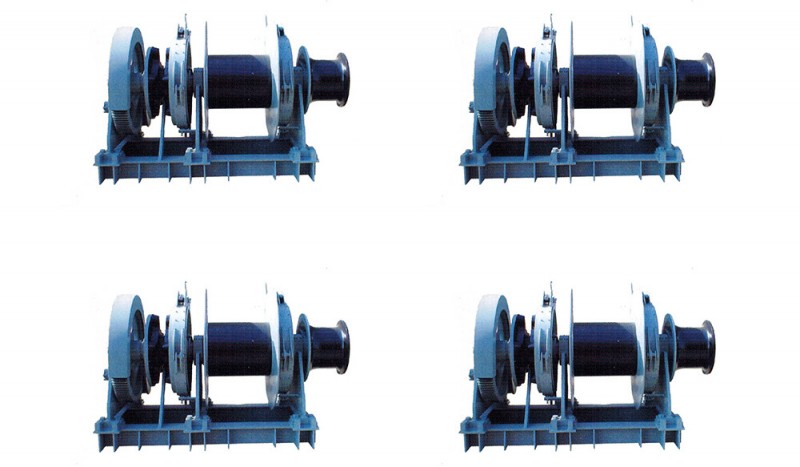

44mm Single hydraulic combined windlass
Category:
Hydraulic anchor windlass
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
44mm Single hydraulic combined windlass:
17.5-50mm Single hydraulic combined windlass

The hydraulic anchor windlass is installed on the main deck of the ship's first raft for the anchoring of the ship and for anchoring the tether.The abchor windlass is mainly composed of a base, a bracket, an anchor sprocket, a brake, a sprocket, a gearbox, an electric control system (except a manual windlass), an electric windlass has an electric motor, and a hydraulic windlass has a hydraulic pumping station.

Drawing

Technical specifications

Anchor Chain
Diameter
Working Load
(KN)
Over Loading
(KN)
Loading Support
(KN)
Nominal Speed
(m/min)
Drum Load
(KN)
Nominal Speed
(m/min)
Cable Capacity
(m)
Mooring Line
Load(KN)
AM2 AM3 AM2 AM3 AM2 AM3
17.5 13 14.6 19.5 21.9 80 115 9 10 10 Φ11×100 8
19 15.3 17.2 23 25.8 95 135 9 25 10 Φ13×100 10
20 17.9 20.0 26.9 30.0 110 157 9 20 10 Φ13×100 10
22 20.6 23 30.9 34.5 126 180 9 20 15 Φ15×100 15
24 24.5 27.4 36.8 41.1 149 214 9 20 15 Φ15×100 20
26 28.7 32.1 43.1 48.2 175 250 9 20 10 Φ22×120 20
28 33.3 37.2 50 55.8 202 289 9 20 10 Φ22×120 20
30 38.3 42.8 57.5 64.2 231 330 9 30 10 Φ22×120 30
32 43.5 48.6 65.3 72.9 261 374 9 30 9 Φ20×120 30
34 49.1 54.9 73.3 82.4 294 421 9 40 9 Φ20×120 30
36 55.1 61.6 82.7 92.4 329 470 9 30 12 Φ20×120 30
38 61.4 68.9 92.1 103.4 365 522 9 40 15 Φ22×150 40
40 58 76 102 114 402 576 9 40 9 Φ22×150 40
42 75 83.8 112.5 125.7 442 632 9 40 15 Φ22×150 50
44 82.3 92 123.5 138 483 691 9 50 15 Φ26×200 50
46 89.9 100.5 134.9 150.8 526 753 9 50 18 Φ26×200 50
48 97.9 109.4 146.9 164.1 570 816 9 60 10 Φ26×200 50
50 106.3 118.8 159.5 178.2 617 882 9 80 15 Φ26×200 50
