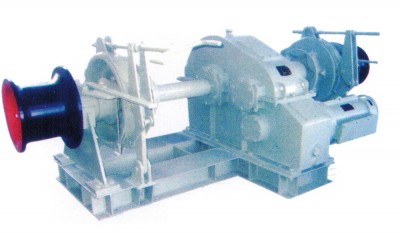

32mm Symmetrical Type Electric Anchor Winch
Category:
Electric winch
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
32mm Symmetrical Type Electric Anchor Winch:
17.5-46mm Symmetrical Type Electric Anchor Winch

The electricw anchor winch is installed on the main deck of the first part of the ship for anchoring and anchoring the cable. The electric anchor winch is a power-driven anchor machine.

Drawing

Technical Specifications


Dia.of
Chain Wheel
(mm)
Working Load
(Kn)
Over Loading
Pulling Force
(Kn)
Holding Load
(Kn)
Nominal Speed
(m/min)
Warping Load
(Kn)
AM2 AM3 AM2 AM3 AM2 AM3
17.5 13.0 14.6 19.5 21.9 80 115 9 8
19 15.3 17.2 23.0 25.8 95 135 9 10
20 17.9 20.0 26.9 30.0 110 157 9 10
22 20.6 23.0 30.9 34.5 126 180 9 15
24 24.5 27.4 36.8 41.1 149 214 9 20
26 28.7 32.1 43.1 48.2 175 250 9 20
28 33.3 37.2 50.0 55.8 202 289 9 20
30 38.3 42.8 57.5 64.2 231 330 9 30
32 43.5 48.6 65.3 72.9 261 374 9 30
34 49.1 54.9 73.7 82.4 294 421 9 30
36 55.1 61.6 82.7 92.4 329 470 9 30
38 61.4 68.9 92.1 103.4 365 522 9 40
40 68.0 76.0 102.0 114.0 402 576 9 40
42 75.0 83.8 112.5 125.7 442 632 9 50
44 82.3 92.0 123.5 138.0 483 691 9 50
46 89.9 100.5 134.9 150.8 526 753 9 50
