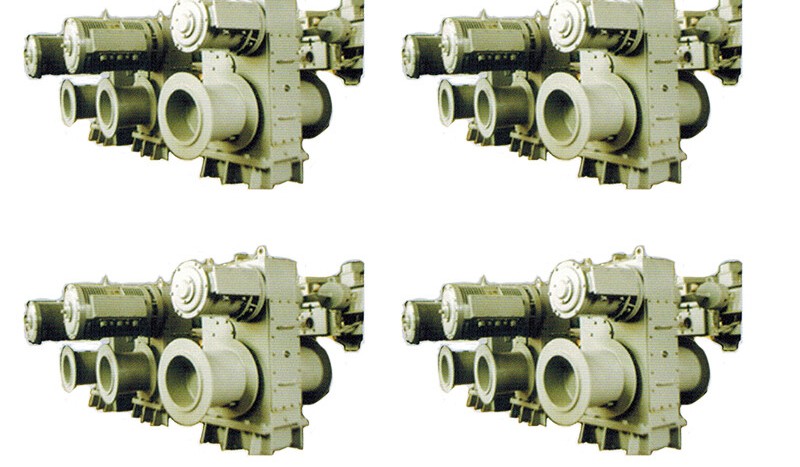

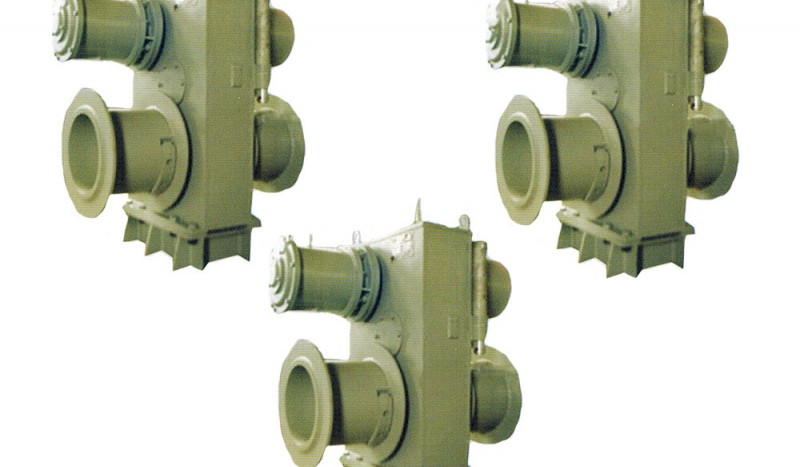

125Kn Electric life boat winch
40-138Kn Electric life boat winch
Electric life & rescue boat winch is matched and used with davit,it provides power for davit.
Design and manufacture of the davit comply with the latest eaach calssification rules requirements,including rescue equipment conform to the 1974 international convention for the safety of the life at sea(SOLAS) and its latest amendment requirements,international lifesaving appliances(LSA) code and the latese lifesaving appliances test rules issued by the international maritime organization(IMO).
Drawing
Technical Specifications
|
S.W.L （KN) |
Hoisting Load (KN) |
Hoisting Speed (m/min) |
Lowering Speed (m/min) |
Motor Power (KW) |
| 40 | 25/20 | ≥10/36 | 0-120 | 5.5/16.8 |
| 50 | 28 | ≥10/36 | 0-120 | 7.5/22.5 |
| 70 | 40 | ≥10/36 | 0-120 | 13/33.5 |
| 100 | 70/55 | ≥10/36 | 0-120 | 15/42 |
| 125 | 90/60 | ≥10/36 | 0-120 | 18/42 |
| 65 | 55 | ≥5/18 | 0-60 | 7.5/22.5 |
| 85 | 65 | ≥5/18 | 0-60 | 8.5/25.5 |
| 100 | 90/60 | ≥5/18 | 0-60 | 11/22.5 |
| 138 | 110/60 | ≥5/18 | 0-60 | 15/22.5 |
