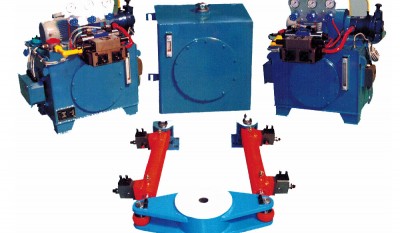

300Kn.m swing type electro-hydraulic steering gear

Reliable marine equipment supplied with technical support, quality control and worldwide delivery.

Loading product images...

300Kn.m swing type electro-hydraulic steering gear

Category: Steering Gear System

Certificate: ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS

FOB Price: Get Latest Price Now

Warranty: 12 Months unless specified otherwise

Place of Origin: China

Request a Quote Download Datasheet

We can supply according to your requirement.

300Kn.m swing type electro-hydraulic steering gear

16-500Kn.m swing type electro-hydraulic steering gear

This series of swing-type electro-hydraulic steering gear mainly consists of a set of two piston-type cylinders, two oil pump power units, one reserve fuel tank, and an additional emergency pump for accumulating pressure in the inland jet stream area. Or a set of DC motor pump sets to meet the emergency requirements of the CCS specification. The control methods include manual reversing valve direct control, electric control and pump control. The electric control servo can be used with any type of automatic steering instrument and follower steering instrument.

Drawing

Technical specifications

Torque （Kn.m）	A	B	Rudder radius R	Center height H	Rudder handle thickness h	Rudder diameter d
Torque （Kn.m）	A	B	Rudder radius R	Center height H	Rudder handle thickness h	Rudder diameter d
8-12	970	500	200	110	120	≤130
16-25	1269	700	300	110	150	≤160
30-40	1170	790	320	115	150	≤160
50-63	1420	940	320	145	180	≤180
75-125	1700	1080	400	145	220	≤200
160-250	2250	1440	650	200	400	≤280
300-450	3100	1800	700	260	550	≤340
500	3500	1900	720	260	600	≤360
