100KN Double-drum Electric Winch:
100KN Double-drum Electric Winch
1.The product is used in engineering ship for positioning and shifting as well as for anchoring and mooring.
2.The product depends on two drums driven by electromotor which works through reductor and open gear.Rope outlet directions are in the low.Drum in connected with main shaft by clutch.The drums are equipped with hand brake,when working,the clutch on one drum releases and hold the brale tightly,then the other drum works.The two drums are not allowed to work at the same time.

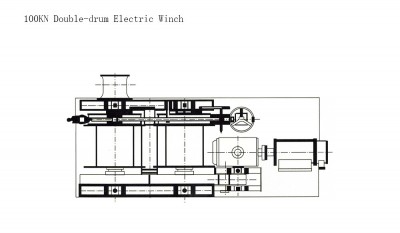

Drawing
Technical specifications
|
Rated Pull |
100KN |
||||
|
Nominal Speed |
16/8/4 m/min |
||||
|
Overloading Pull |
150KN |
||||
|
Cable Diameter |
φ32 |
||||
|
Holding Load |
300KN |
||||
|
Cable Capacity(5 layer) |
250m |
||||
|
Transmission Ratio |
i=175.5 |
||||
|
Electric Motor Specification |
|||||
|
Type |
JZ2-H52-4/8/16 |
||||
|
Power |
22/22/16 KW |
||||
|
Rated Rotation |
1420/670/320 r/min |
||||
|
Duty Type |
10/30/5 min |
||||
|
Supply |
380V 50HZ |
||||
|
Total Weight |
9600KG |
||||
