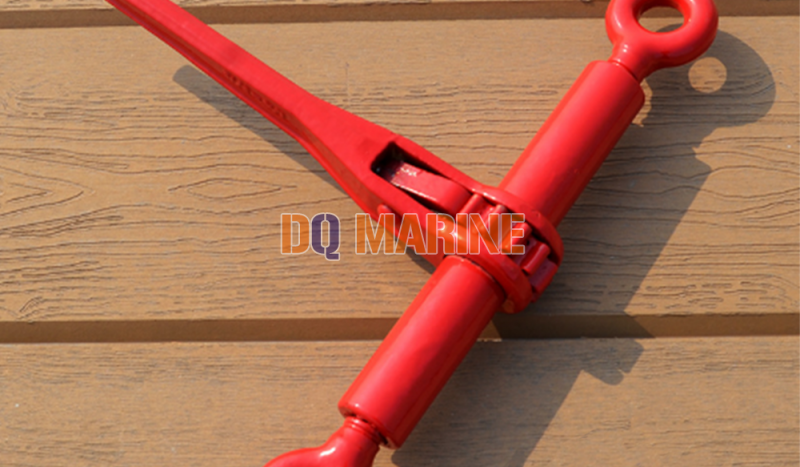

Ratchet Type Load Binders without Hooks or Links
The Introduction of Ratchet Type Load Binders without Hooks or Links
It is a kind of tension in the transport of goods, mobile equipment, and shipment or use the tension during storage can be played after the fixed function, the object will not fall off, safe and reliable, the protection of the object is not damaged, the operation is simple, compared to other methods of tension, the efficiency increased more than ten times.
Description
Ratchet Type Load Binders without Hooks or Links adopts American standard, There are two kinds of handle, Forging handle material is 45 steel, Casting handle material is malleable iron. Surface can be sprayed plastics.
Product Information
Ratchet Type Load Binders without Hooks or Links sizes table
| Min-Max Chain Size（in） | WLL （lbs） | Proof Load （lbs） | Breaking Load（lbs） | Weight（lbs） | Handle Length (in) | Dimensions(in) | |||||
| A | B | C | E | E1 | F | ||||||
| 5/16-3/8 | 5400 | 10800 | 19000 | 7.8 | 13.42 | 13.92 | 1.3 | 2.6 | 13.7 | 21.7 | 0.79 |
| 3/8-1/2 | 9200 | 18400 | 33000 | 7.8 | 13.92 | 13.92 | 1.3 | 2.6 | 13.7 | 21.7 | 1.02 |
| 1/2-5/8 | 13000 | 26000 | 46000 | 8.5 | 13.92 | 13.92 | 1.3 | 2.6 | 24.1 | 32.13 | 27.04 |
