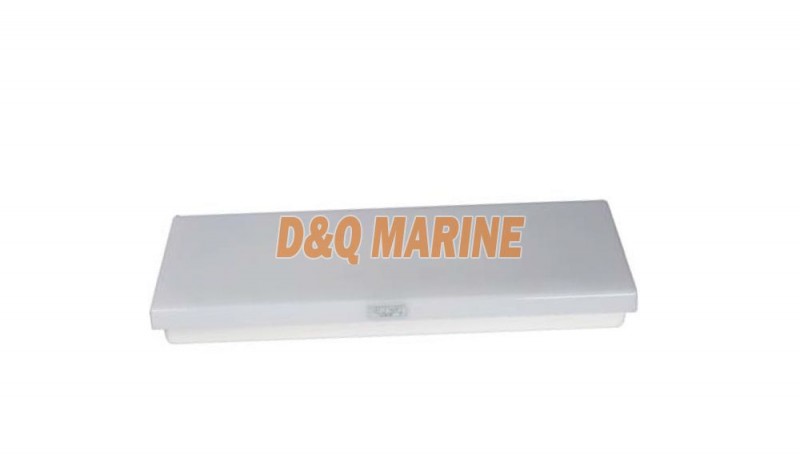

ZYP20LED LED Ceiling Light
The scope of application
The lamp is suitable for illumination for dry compartments of all types of vessels, such as living cabin crew and passengers, rest room, dining room, cab, telegraph room and within the corridors and other places.
Products feature
1.The shell adopts good quality cold-rolled plate by mold pressing ,surface is powder coated after anti-acid white.
2. Lampshade adopts milky white poly carbonate by injection molding with softness rays.
3. Adopt LED light source with long working life, high intensity, and low energy consumption.
4. Equipped with 24V / 1.5W LED emergency light source, as temporary lighting when power off. With emergency lamp holder lights, on the lampshade with a red remark.
5. The lampshade and the shell are fixed with turn plate spring, with firm structure.
6. Mounting type: recessed type, fixed on the top of the tank, also can be fixed to the beam
7. The cable outside diameter is Φ11～Φ13mm.
Adopt standard
1. Conform to Rules for the classification of sea-going steel ships.
2. Conform to IEC60598-1-2008 INTERNATIONAL STANDARD.
3. Approved by type approval of China Classification Society (CCS).
Installation
ZYP20LED LED Ceiling Light Specification
| Type | ZYP20-2/2LED | ZYP20-4/4LED |
| Voltage(V) | 220V | |
| Power(W) | 2*12 | 4*12 |
| Light Source | LED | |
| Protection Class | IP44 | |
| Weight( Kg) | 4 | 4.1 |
