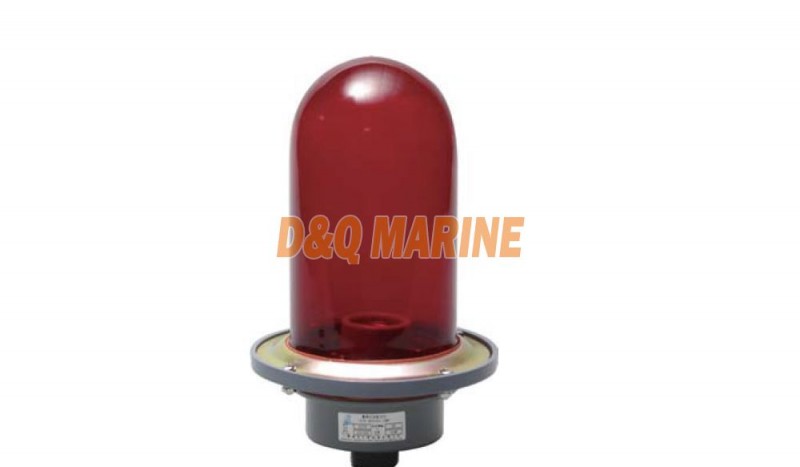

ZJD4 Hifr Heading Lamp

ZJD4 Hifr Heading Lamp

The scope of application

Fixed on the left of ship vessel, three lights are on a line, and parallel to the middle line of ship vessel for the driver of helicopter to know the correct direction and height reference when hovering to fuel up.

Products feature

1. The shell adopts good quality stainless steel by pressing mold.

2. The glass lampshade is made of PC material and has the feature of good transmission of light.

3. with signal bulb for marine special use.

4. The cable outside diameter is Φ9～Φ11mm.

Adopt standard

1. Conform to GJB534B-2009 STANDARD of GENERAL REQUIREMENTS FOR HELICOPTER FACILITIES OF NON-AVIATION SHIPS.

2. Conform to RULES FOR CLASSIFICATION OF SEA-GOING STEEL SHIPS.

3. Conform to GB/T3027-2012 STANDARD of MARINE ILLUMINATE LIGHTS COMMONLY USED TECHNOLOGY CONDITIONS.

4. Conform to CAP437-2013 STANDARD of SAFETY REGULATIONS FOR MARINE HELICOPTER DECK PLATFORM.

Installation

ZJD4 Hifr Heading Lamp Specification
