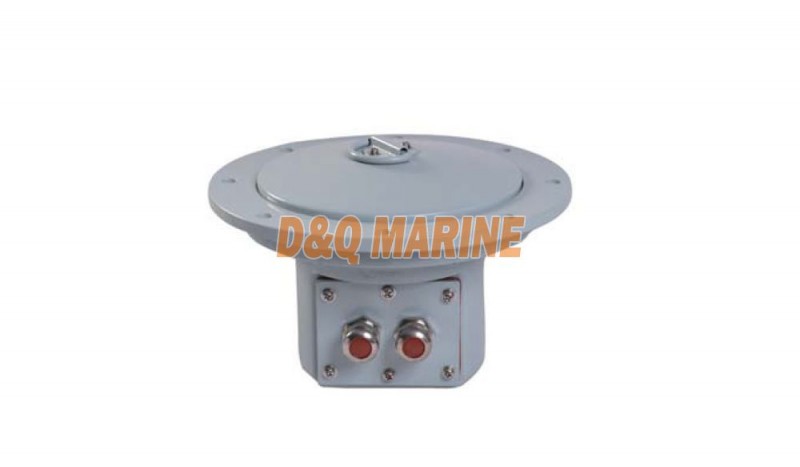

ZJD1 Platfrom Edge Light/ZJD2 Nose Limited Line Light
Category:
Helicopter Landing Light
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
ZJD1 Platfrom Edge Light/ZJD2 Nose Limited Line Light:
The scope of application

ZJD1 is boundary light of platform, fixed on the mark line of lift support boundary as light and mark for the helicopter rising and landing.

ZJD2 is limit position lighting on the front, fixed on the limit position on the front of lift support as light and mark for helicopter rising and landing.

Products feature

1. The shell adopts good quality stainless steel by pressing mold.

2. The lighting adopts mosaic type to fix. The vessel joint with flange by electric welding.

3.The lampshade is toughened and it can be capable of withstanding abrupt temperature changes about 200℃.

4.These two types light can use LED and Tungsten halogen lamp as electric light source respectively, the bulb have the features of long lifetime, high light intensity and lower energy consumption.

5. The cable outside diameter is Φ9~Φ11mm.

Adopt standard

1. Conform to GJB534B-2009 STANDARD of GENERAL REQUIREMENTS FOR HELICOPTER FACILITIES OF NON-AVIATION SHIPS.

2. Conform to RULES FOR CLASSIFICATION OF SEA-GOING STEEL SHIPS.

3. Conform to GB/T3027-2012 STANDARD of MARINE ILLUMINATE LIGHTS COMMONLY USED TECHNOLOGY CONDITIONS.

4. Conform to CAP437-2013 STANDARD of SAFETY REGULATIONS FOR MARINE HELICOPTER DECK PLATFORM.

Installation

ZJD1 Platfrom Edge Light/ZJD2 Nose Limited Line Light Specification

Name Platfrom Edge Light Nose Limited Line Light
Type ZDJ1 ZDJ2
Visibility ≥3n.m ≥1.5n.m
Level arc Half Globe Type Light
Lamp Holder B15d B15d
Light Source Tungsten Halogen Bulb LED Tungsten Halogen Bulb LED
Voltage/Power 220V/50HZ/60W 220V/50HZ/10W 220V/50HZ/60W 220V/50HZ/5W
Color White Red
Protection Class IP56
Weight( Kg) 7.5
