XBD-W Series Horizontal Fire Fighting Pump:
China XBD-W Series Horizontal Fire Fighting Pump:
XBD-W fire pump is horizontal, single - suction multi - stage, sectional structure, is the latest development and production of energy - saving products.Its performance parameters and technical indicators meet the relevant standards, with high efficiency, low operating noise, good cavitation resistance, reasonable structure, long service life and other remarkable characteristics.It is mainly used for water supply and drainage in fire fighting system, water supply and drainage in factory and mine, water supply and drainage in high-rise building, water supply and drainage in long-distance, heating, bathroom, water circulation in boiler, water supply and equipment supporting in air conditioning and refrigeration system, etc.

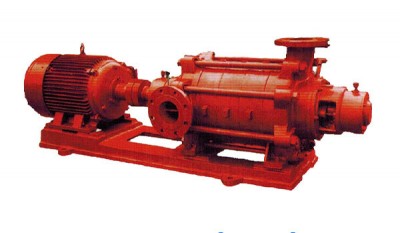

XBD-W Series Horizontal Fire Fighting Pump
Main Technical Data
| Model |
Capacity L/s |
Pressure MPa |
Rev speed r/min |
Motor power KW |
| XBD1.8/5-50W | 5 | 0.18 | 1450 | 2.2 |
| XBD2.7/5-50W | 5 | 0.270.36 | 1450 | 3 |
| XBD3.6/5-50W | 5 | 0.45 | 1450 | 4 |
| XBD4.5/5-50W | 5 | 0.54 | 1450 | 5.5 |
| XBD5.4/5-50W | 5 | 0.63 | 1450 | 5.5 |
| XBD6.3/5-50W | 5 | 0.72 | 1450 | 7.5 |
| XBD7.2/5-50W | 5 | 0.81 | 1450 | 7.5 |
| XBD8.1/5-50W | 5 | 0.23 | 1450 | 7.5 |
| XBD2.3/10-75W | 10 | 0.34 | 1450 | 5.5 |
| XBD3.4/10-75W | 10 | 0.46 | 1450 | 7.5 |
| XBD4.6/10-75W | 10 | 0.55 | 1450 | 11 |
| XBD5.5/10-75W | 10 | 0.69 | 1450 | 11 |
| XBD6.9/10-75W | 10 | 0.8 | 1450 | 15 |
| XBD8.0/10-75W | 10 | 0.92 | 1450 | 15 |
| XBD9.2/10-75W | 10 | 1.03 | 1450 | 18.5 |
| XBD10.3/10-75W | 10 | 0.29 | 1450 | 18.5 |
| XBD2.9/20-100W | 20 | 0.43 | 1450 | 11 |
| XBD4.3/20-100W | 20 | 0.58 | 1450 | 15 |
| XBD5.8/20-100W | 20 | 0.72 | 1450 | 22 |
| XBD7.2/20-100W | 20 | 0.96 | 1450 | 30 |
| XBD8.2/20-100W | 20 | 1.01 | 1450 | 30 |
| Also have bigger pumps, pls contact us for more information. | ||||
Packing and Delivery：
1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.
2. Fast Delivery, delivery time can negotiate when order.
How to Order?
1. Please inform us the model, type or size you need.
2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
