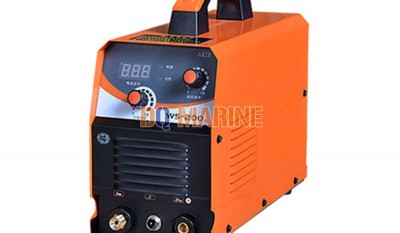

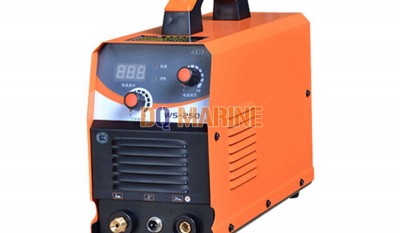

WS-200 250 Argon Arc Welding Machine
WS-200 250 Argon Arc Welding Machine Introduction
It adopts MOSFET inverter technology, updated electronic circuit design, light power supply, saving power energy.
Welding current display on LED screen, clear and visual, even have the preset current.
High-frequency initiation makes argon arc welding easy to operate.
Suitable for welding stainless steel, carbon steel, alloy steel, copper, titanium, and other metals.
Acidic and alkaline welding rod or other types of welding rods can be used.
Technical parameter
| TYPE | WS-200 | WS-250 |
| Power Voltage (V) | AC 220V±15% | AC 220V±15% |
| Frequency (HZ) | 50/60 | 50/60 |
| Rated Input Power (KVA) | 3.3 | 4.2 |
| Rated No-Load Voltage (V) | 56 | 56 |
| Output current Adjustment (A) | 10-160 | 10-190 |
| Duty Cycle (%) | 60 | 60 |
| No-Load Loss (W) | 40 | 40 |
| Efficiency (%) | 80 | 80 |
| Insulation Level | F | F |
| Weight (KG) | 7 | 7.4 |
| Plate Thickness (mm) | 0.3-5 | 0.3-7 |
| Overall Size (mm) | 369x153x315 | 369x153x315 |
