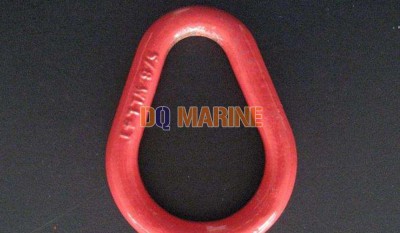

Weld Less Sling links
Introduction
The ring is a kind of rigging fittings. Mainly used in power, metallurgy, petroleum, machinery, railways, chemicals, ports, mines, construction and other walks of life lifting and lifting, but also with the chain, wire rope, double ring buckle, hook and other accessories consisting of slings
Description
The material of this product is 40Cr, it is made by die forging process, and Surface can be galvanized or sprayed plastics. The size is from 3/8in to 1 3/8in.
Product Details
Weld Less Sling Links sizes table
| Diameter Stock(in) | Inside Length (in) | Inside Width | Inside Width | Working Load Limit | Weight (lbs) |
| Small End(in) | Large End(in) | Single Pull (Ibs) | |||
| 3/8 | 2 1/4 | 3/4 | 1 1/2 | 1,600 | 0.23 |
| 1/2 | 3 | 1 | 2 | 2,900 | 0.55 |
| 5/8 | 3 3/4 | 1 1/4 | 2 1/2 | 4,200 | 1.1 |
| 3/4 | 4 1/2 | 1 1/2 | 3 | 6,000 | 1.95 |
| 7/8 | 5 1/4 | 1 3/4 | 3 1/2 | 8,300 | 2.78 |
| 1 | 6 | 2 | 4 | 10,800 | 4.3 |
| 1 1/4 | 7 3/4 | 2 1/2 | 5 | 16,750 | 8.5 |
| 1 3/8 | 8 1/4 | 2 3/4 | 5 1/2 | 20,500 | 11.5 |
