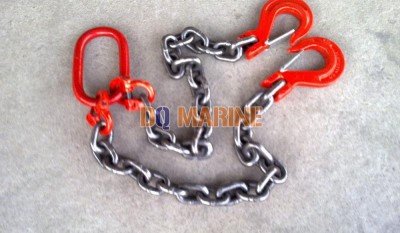

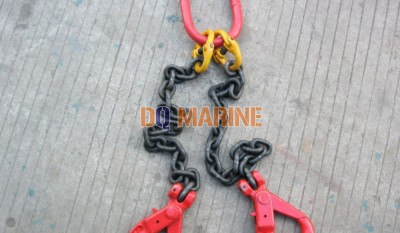

Two Legs Chain Sling
Introduction
The parameter of chain in the table is in accordance with JB/T8108.1-1999 Grade (8).
The terminal uses the chain link with the shackle. Is advantageous for the customer to combine at will.
Terminal may be hook, link and shackle.
Product Details
Two Legs Chain Sling sizes table
| TYPE | Diamerter of the chain（mm） | WLL（t） | Master link | Weight/m（kg/m） | Chain weight（kg） | |
| α≤45° | 45°<α≤60° | A×B×d（mm） | ||||
| YLS2-6 | 6 | 1.4 | 1 | 65×130×16 | 3.61 | 0.79 |
| YLS2-8 | 8 | 2.1 | 1.5 | 80×150×20 | 6.1 | 1.38 |
| YLS2-10 | 10 | 3.5 | 2.5 | 90×160×24 | 11.51 | 2.2 |
| YLS2-12 | 12 | 4.9 | 3.5 | 90×160×24 | 16.45 | 3.1 |
| YLS2-14 | 14 | 7 | 5 | 100×190×28 | 19.39 | 4.13 |
| YLS2-16 | 16 | 8.4 | 6 | 110×200×28 | 27.2 | 5.63 |
| YLS2-18 | 18 | 11.2 | 8 | 120×230×34 | 30.21 | 6.85 |
| YLS2-20 | 20 | 14 | 10 | 135×250×38 | 37.03 | 8.6 |
| YLS2-22 | 22 | 16.8 | 12 | 140×270×42 | 71.23 | 10.2 |
| YLS2-24 | 24 | 19.6 | 14 | 140×270×42 | 75.3 | 12.78 |
| YLS2-26 | 26 | 23.8 | 17 | 160×310×56 | 124.37 | 14.87 |
| YLS2-30 | 30 | 30.8 | 22 | 180×330×56 | 134.3 | 19.6 |
| YLS2-34 | 34 | 50.4 | 36 | 210×410×68 | 155.45 | 22.7 |
