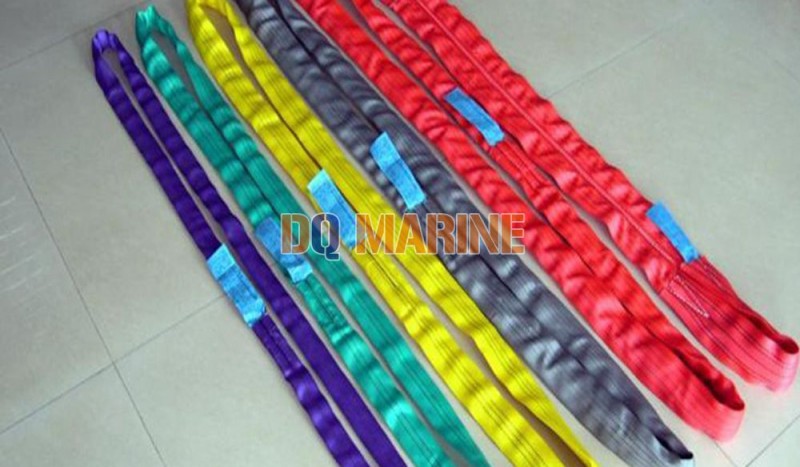

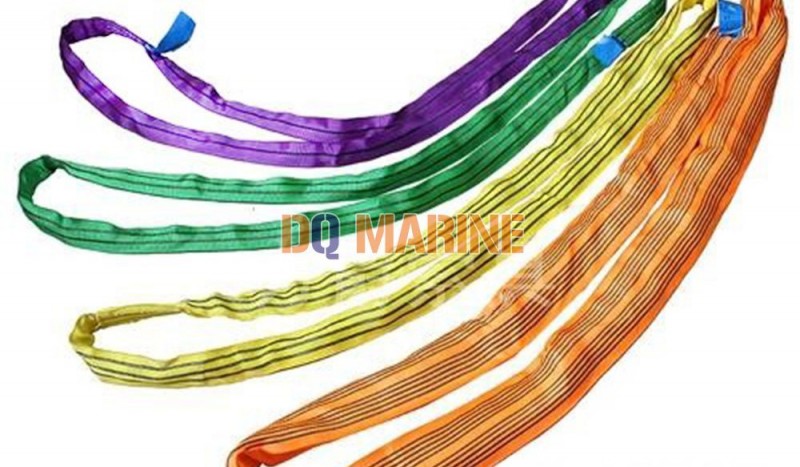

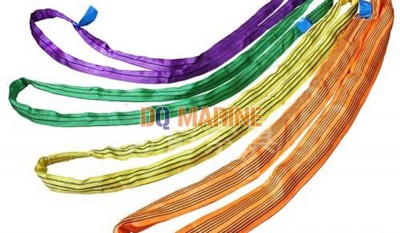

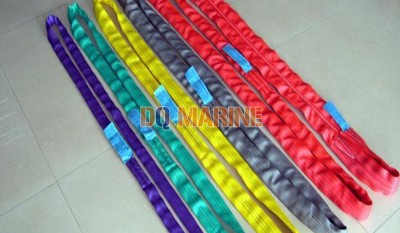

RA Round Sling
Introduction
Round sling is composed of step-less encircled tows in parallel arrangement and wear-resistant casing. When local damage to load bearing care of round sling as a result of serious overload arising from malfunction or long-time use occurs, its casing will break first for warning to prevent accident from occurring. Breakdown of casing is deemed as the basis for abandonment, which visualizes security inspection for the sling.
Product Information
RA round sling is soft in texture and with multiple suspension points and is entanglement.
The max length according to customer demand.
RA Round Sling Sizes Details
| TYPE | Working Load Limit (T) | Approximate Thickness (mm) | Approximate Width (mm) | Min. Length (m) |
| RA1/2 | 0.5 | 4 | 50 | 0.5 |
| RA001 | 1 | 6 | 50 | 0.5 |
| RA002 | 2 | 8 | 60 | 0.5 |
| RA003 | 3 | 9 | 70 | 0.5 |
| RA004 | 4 | 11 | 70 | 0.5 |
| RA005 | 5 | 13 | 85 | 0.5 |
| RA006 | 6 | 13 | 85 | 1 |
| RA008 | 8 | 13 | 120 | 1 |
| RA010 | 10 | 14 | 120 | 2 |
| RA012 | 12 | 15 | 130 | 2 |
| RA015 | 15 | 18 | 130 | 2 |
| RA020 | 20 | 20 | 140 | 2.5 |
| RA025 | 25 | 24 | 140 | 2.5 |
| RA030 | 30 | 32 | 145 | 2.5 |
| RA040 | 40 | 40 | 150 | 2.5 |
| RA050 | 50 | 45 | 175 | 2.5 |
| RA060 | 60 | 65 | 205 | 4 |
| RA080 | 80 | 70 | 250 | 4 |
| RA100 | 100 | 80 | 290 | 4 |
| RA200 | 200 | 120 | 465 | 5 |
| RA300 | 300 | 160 | 555 | 5 |
| RA400 | 400 | 200 | 700 | 5 |
| RA500 | 500 | 220 | 790 | 8 |
| RA600 | 600 | 240 | 875 | 8 |
| RA700 | 700 | 260 | 920 | 8 |
| RA800 | 800 | 280 | 985 | 8 |
| RA900 | 900 | 300 | 1050 | 9 |
| RA1000 | 1000 | 320 | 1080 | 9 |
