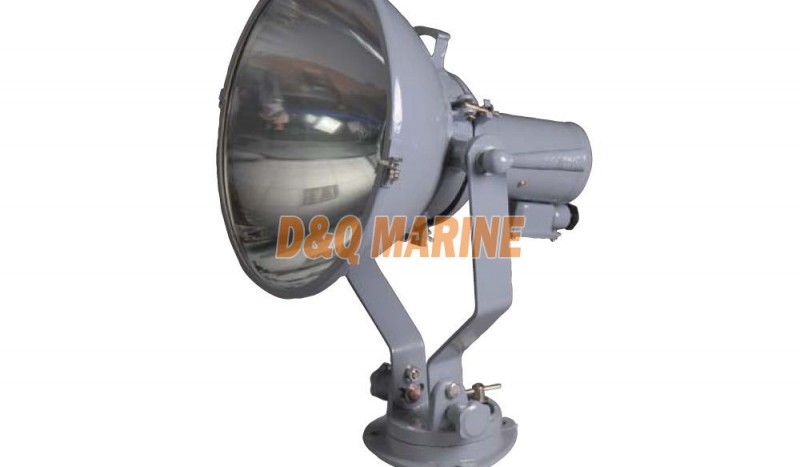

TG7/TG7A Spot Light
The scope of application
This product is designed to use for illumination in ship, mine, wharf, building site etc.Products feature
1. Easy to replace the bulbs.2. The body of light is made of steel or brass material.
3. The shade adopt toughened safety glass.
4. The reflector have high reflective after chrome-plating and polish processing.
5. The body of light can be rotated 90 degree in horizontal and adjusted 120 degree in pitch.
6. The cable outside diameter is Φ9～Φ12mm.
Adopt standard and product certification
1. Conform to RULES FOR CLASSIFICATION OF SEA-GOING STEEL SHIPS.2. Conform to GB7000.7 of SAFETY REQUIREMENTS FOR FLOOD LIGHT.
3. Conform to GD01 of GUIDELINES FOR TYPE APPROVAL TEST OF ELECTRIC AND ELECTRONIC PRODUCTS.
4. Approved by China Classification Society (CCS).
Installation
TG7/TG7A Spot Light Specification
| Type | TG7 | TG7A |
| Power(W) | 450 | |
| Voltage(V) | 220 | |
| Lamp Holder | E40 | |
| Llluminant | Self-ballast Mercury Light | |
| Luminous Flux(Lm) | 11000 | |
| Protection Class | IP56 | |
| Material | Steel | Brass |
| Weight( Kg) | 11.3 | 14.2 |
