KDH-PG Electromagnetic Compatibility Cable Connector
China KDH-PG Electromagnetic Compatibility Cable Connector:
1.Material:Brass coat with nickel
2.Fixture:Nylon plc(PA)3."O"sealed ring:Nitrile rubber buna
4.Sealed Part:Nitrile rubber buna
5.Class of Protection:IP68-10Bar
6.Ambient Temperature: -40℃to 100℃ few time 120℃
Specification:
| Type | Applicable Cable Diameter | GL | H | AG inch thread | Cabinet aperture | Lengthened GL |
| PG7 | 3~6.5 | 5 | 19 | Φ12.5 | Φ12.7 | 10 |
| PG9 | 4~8 | 6 | 20 | Φ15.2 | Φ15.4 | 10 |
| PG11 | 5~10 | 6 | 21 | Φ18.6 | Φ18.8 | 10 |
| PG13.5 | 6~12 | 6 | 22 | Φ20.4 | Φ20.6 | 10 |
| PG16 | 10~14 | 6 | 23 | Φ22.5 | Φ22.7 | 10 |
| PG21 | 13~18 | 7 | 25 | Φ28.3 | Φ28.5 | 12 |
| PG29 | 17~25 | 8 | 29 | Φ37.0 | Φ37.5 | 12 |
| PG36 | 24~32 | 8 | 35 | Φ47.0 | Φ47.2 | 15 |
| PG42 | 31~38 | 9 | 37 | Φ54.0 | Φ54.2 | 15 |
| PG48 | 37~445 | 10 | 38 | Φ59.3 | Φ59.5 | 15 |
| MG12*1.5 | 3~6.5 | 5 | 19 | Φ12*1.5 | Φ12.2 | 10 |
| MG16*1.5 | 4~8 | 6 | 20 | Φ16*1.5 | Φ16.2 | 10 |
| MG18*1.5 | 5~10 | 6 | 21 | Φ18*1.5 | Φ18.2 | 10 |
| MG20*1.5 | 6~12 | 6 | 22 | Φ20*1.5 | Φ20.2 | 10 |
| MG22*1.5 | 10~14 | 6 | 23 | Φ22*1.5 | Φ22.2 | 10 |
| MG28*1.5 | 13~18 | 7 | 25 | Φ28*1.5 | Φ28.2 | 12 |
| MG36*1.5 | 17~25 | 8 | 29 | Φ36*1.5 | Φ36.2 | 12 |
| MG40*1.5 | 24~32 | 8 | 35 | Φ48*1.5 | Φ48.2 | 15 |
| MG56*1.5 | 31~38 | 9 | 37 | Φ56*1.5 | Φ56.2 | 15 |
| MG63*1.5 | 37~445 | 10 | 38 | Φ63*1.5 | Φ63.2 | 15 |

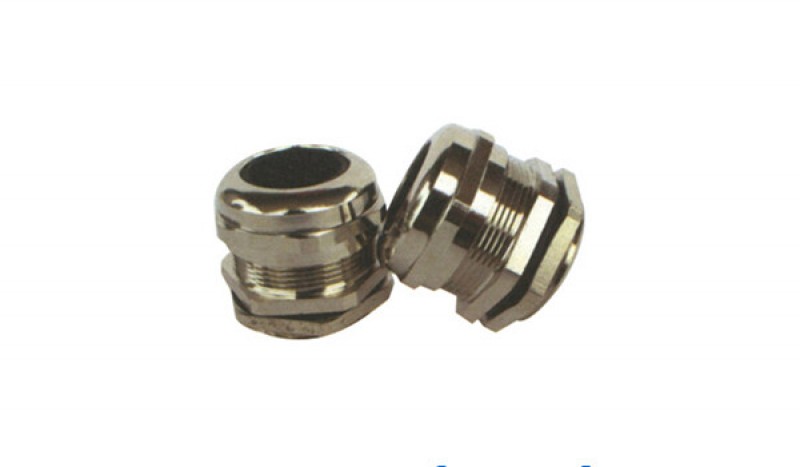

Picture:
Product Advantage:
1.Satisfactory Quality2.Competitive Price
3.Prompt Delivery
4.7x24 hours service
Packing and Delivery：
1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.2. Fast Delivery, delivery time can negotiate when order.
How to Order?
1. Please inform us the model, type or size you need.2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
