Socket Box for Reefer Container Type A:
China Socket Box for Reefer Container Type A:
Efficient working is essential,since the requirements to be met by modem container shipping are constantly increasing.Fast and reliable that is what all personnel and equipment must be at all times,in every work operation and down to the last detail;dependable easy to use,interchange and optimally tailored to suit the various needs of shipping companies and shipyards.Products Feature:
1.Minimum dimensions and compact design2.The simple push-in and interior plug technique makes it possible to change the MCCB within a minimum of time there is no need to disconnect the remaining sockets.
3.Case and operating lever for MCCB made of stainless steel
4.With mechanical double interlock device Plug can be removed in OFFposition only
5.The plug can be plugged into from blow of the box.The groove of socket is designed so that plug can be easily plugged into socket.
6.High degree of protection of enclosure IP67.Water can not enter box even if the cap of the socket is no tightening.
7.MCCB is excellent with high breaking capacity(10KA if required 30KA)
8.Certified by CCS,GL,LR,BV and ABS,Conform to ICE309,ISO1496,GB12321 standard.
Drawing:
Specification:
| Name | Type(without monitoring socket) | Type(without monitoring socket) | A(mm) | B(mm) |
| one gang | CZXS3-2/15-1W | CZXS3-2/15-1WJ | 185 | 210 |
| two gang | CZXS3-2/15-2W | CZXS3-2/15-2WJ | 325 | 400 |
| three gang | CZXS3-2/15-3W | CZXS3-2/15-3WJ | 480 | 555 |
| four gang | CZXS3-2/15-4W | CZXS3-2/15-4WJ | 625 | 700 |
| five gang | CZXS3-2/15-5W | CZXS3-2/15-5WJ | 760 | 835 |
| six gang | CZXS3-2/15-6W | CZXS3-2/15-6WJ | 915 | 990 |
| seven gang | CZXS3-2/15-7W | CZXS3-2/15-7WJ | 1060 | 1135 |
| eight gang | CZXS3-2/15-8W | CZXS3-2/15-8WJ | 1025 | 1280 |
| nine gang | CZXS3-2/15-9W | CZXS3-2/15-9WJ | 1450 | 1525 |
| ten gang | CZXS3-2/15-10W | CZXS3-2/15-10WJ | 1595 | 1670 |

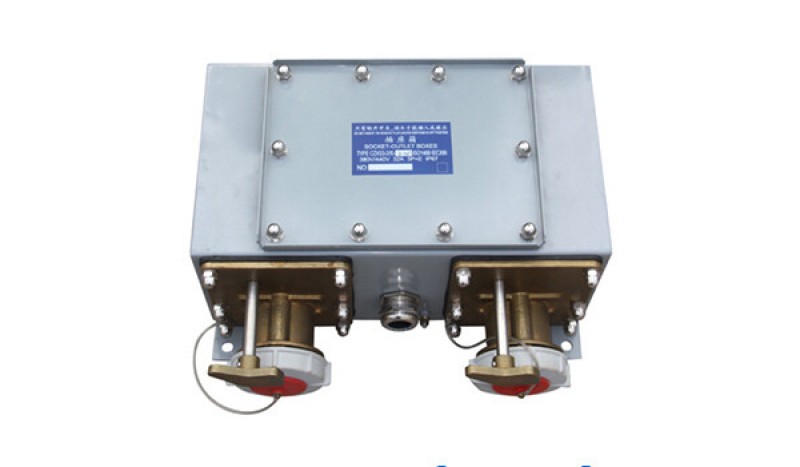

picture：
Product Advantage:
1.Satisfactory Quality2.Competitive Price
3.Prompt Delivery
4.7x24 hours service
Packing and Delivery：
1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.2. Fast Delivery, delivery time can negotiate when order.
How to Order?
1. Please inform us the model, type or size you need.2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
