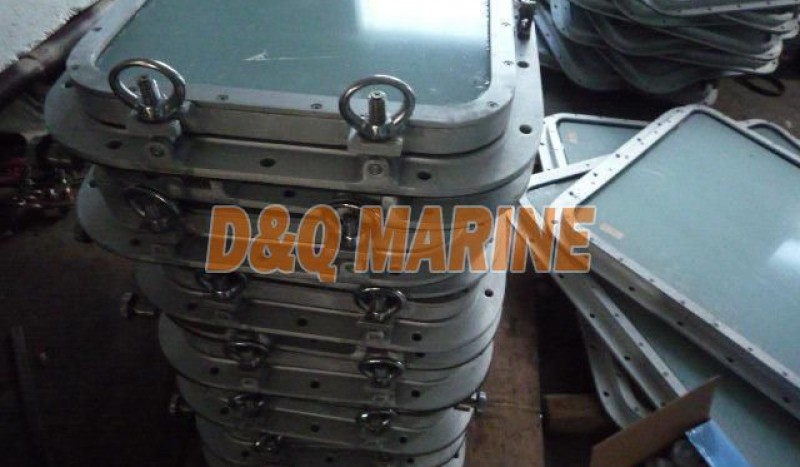

Fixed Rectangular Window Wheel House
Fixed Rectangular Window Wheel House:
| SERIES | TYPE | CODE | NORMINAL SIZE | OPENING SIZE | WINDOW SEAT | OPEN TYPE | |
| WXH | W1XH1 | r | W2XH2 | ||||
|
N P H |
E F |
1 | 300X425 | 352X477 | 76 | 348X473 |
ILB IRB ITB OLB ORB OTB NOB |
| 2 | 355X500 | 407X552 | 76 | 403X548 | |||
| 3 | 400X560 | 452X612 | 76 | 448X608 | |||
| 4 | 450X630 | 502X682 | 126 | 498X678 | |||
| 5 | 500X710 | 552X762 | 126 | 548X758 | |||
| 6 | 560X800 | 612X852 | 126 | 608X848 | |||
| 7 | 900X630 | 952X682 | 126 | 948X678 | |||
| 8 | 1000X710 | 1052X762 | 126 | 1048X758 | |||
| 9 | 1100X800 | 1152X852 | 126 | 1148X848 | |||
