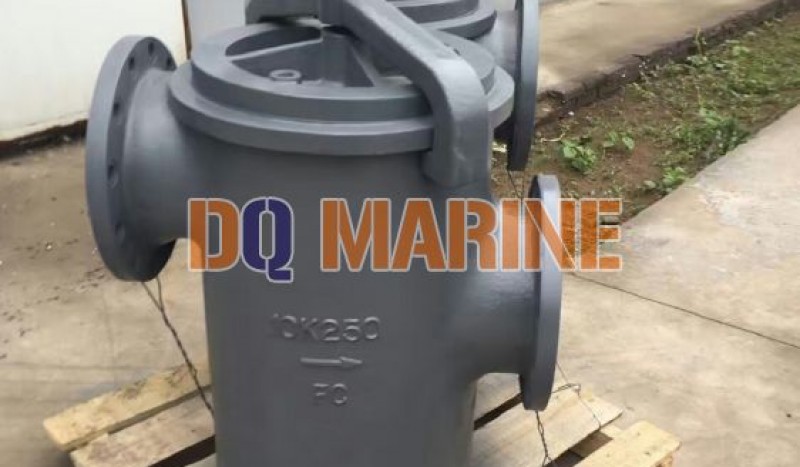

Shipbuilding Simplex Oil Strainer JIS F7209
China Shipbuilding Simplex Oil Strainer JIS F7209:
Shipbuilding Simplex Oil Strainer JIS F7209 is used to filter the fuel oil and lubrication oil in the marine oil pipeline.
Technical Specification:
1. Design and manufacturing standard: JIS F7209
2. Inspection Standard: JIS F7200
3. Max Working Temperature: 150℃
4.Max Working Pressure: 0.5Mpa
5. Hydraulic Test Pressure: 0.75Mpa
6. Type: Straight Type: S type, Angle Type: LA, LB.
Main Material:
Body:Cast Iron/Nodular Iron (FC200, FCD400)
Bonnet:Cast Iron/Nodular Iron (FC200, FCD400)
Yoke:Nodular Cast Iron (FCD450)
Yoke Plug: Brass
Filter Cylinder: Carbon Steel (SS400)
Wire: Stainless Steel (SUS304 or SUS316)
Air Vent Head Plug: Brass
Gasket: PTFE
Drain Plug: Brass
Gasket: PTFE
O-Ring: NBR
Main Size(mm):
| DN | d | L | L (LA/LB) | D | C | No of Bolt Hole | h | t | H |
| 5K20 | 25 | 190 | 85 | 65 | 4 | 12 | 14 | 240 | |
| 5K25 | 25 | 190 | 95 | 95 | 75 | 4 | 12 | 14 | 240 |
| 10K25 | 25 | 190 | 95 | 125 | 90 | 4 | 19 | 16 | 240 |
| 5K32 | 32 | 260 | 130 | 115 | 90 | 4 | 15 | 18 | 328 |
| 10K32 | 32 | 260 | 130 | 135 | 100 | 4 | 19 | 20 | 328 |
| 5K40 | 40 | 260 | 130 | 120 | 95 | 4 | 15 | 16 | 328 |
| 10K40 | 40 | 260 | 130 | 140 | 105 | 4 | 19 | 20 | 328 |
| 5K50 | 50 | 280 | 140 | 130 | 105 | 4 | 15 | 16 | 405 |
| 10K50 | 50 | 280 | 140 | 155 | 120 | 4 | 19 | 20 | 405 |
| 5K65 | 65 | 340 | 170 | 155 | 130 | 4 | 15 | 18 | 495 |
| 10K65 | 65 | 340 | 170 | 175 | 140 | 4 | 19 | 22 | 495 |
| 5K80 | 80 | 370 | 185 | 180 | 145 | 4 | 19 | 18 | 525 |
| 10K80 | 80 | 370 | 185 | 185 | 150 | 8 | 19 | 22 | 525 |
| 5K100 | 100 | 420 | 210 | 200 | 165 | 8 | 19 | 20 | 651 |
| 10K100 | 100 | 420 | 210 | 210 | 175 | 8 | 19 | 24 | 651 |
