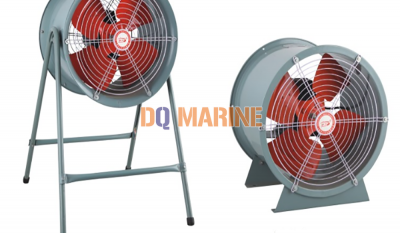

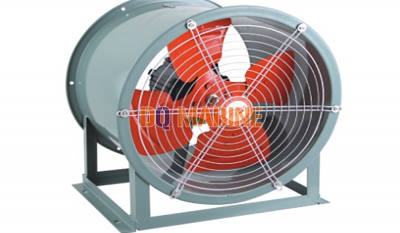

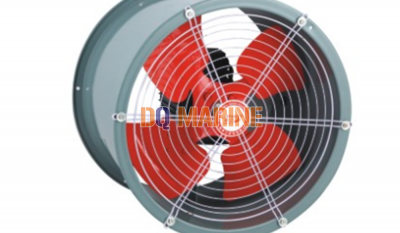

SF Series Axial-Flow Fan

Category: Marine Fan

Certificate: ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS

FOB Price: Get Latest Price Now

Warranty: 12 Months unless specified otherwise

Place of Origin: China

Request a Quote Download Datasheet

We can supply according to your requirement.

SF Series Axial-Flow Fan

SF Series Axial-Flow Fan Introduction

The axial-flow fan of SF series is blessed with smooth streamline surface, stable operation, and high efficiency, low noise and less energy consumption and so on.

And classed into the following four models according to use requirements: manifold pipeline type, stationary type, wall type and position type, as 12 models according to impeller diameter.

Main Technical Parameter

Machine No.	Rotation Speed (r/min)	Maching Motor (Kw)	Volume Flow (m3/h)	Total Pessure (Pa)	Noise (dB)
2	2800	0.09	1300	140	62
2	1450	0.04	600	20	57
2.5	2800	0.25	2100	215	65
2.5	1450	0.09	1000	35	59
3	2800	0.37	3000	230	68
3	1450	0.12	2000	59	61
3.5	2800	0.75	6000	260	72
3.5	1450	0.25	3000	78	73
4	2800	1.1	8513	380	77
	1450	0.55	5870	149	73
	960	0.25	4500	80	64
4.5	1450	0.55	8000	160	73
5	1450	0.75	10000	170	74
5	960	0.37	7700	120	66
5.5	1450	1.1	13000	200	76
5.5	960	0.37	8500	140	68
6	1450	2.2	18700	300	80
6	960	1.1	14500	180	75
7	1450	3	24500	350	85
7	960	2.2	22000	210	80
8	1450	4	37200	380	88
8	960	2.2	28000	230	82
10	960	4	50000	260	88
