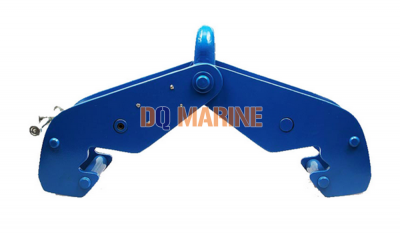

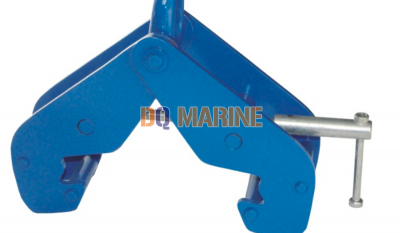

Rail Holder
Rail Holder Product Details
The parameter table
| Model | Max Load(kg) | Open Distance(mm) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | Net Weight(KG) | ||
| min | max | min | max | |||||||||
| JC1 | 1000 | 75-220 | 270 | 183 | 375 | 66 | 4 | 210 | 102 | 165 | 25 | 3. 5 |
| JC2 | 2000 | 75-220 | 270 | 183 | 375 | 74 | 6 | 210 | 102 | 165 | 25 | 4. 5 |
| JC3 | 3000 | 80-320 | 365 | 240 | 520 | 103 | 8 | 258 | 135 | 225 | 45 | 9. 5 |
| JC5 | 5000 | 80-320 | 365 | 240 | 520 | 111 | 10 | 258 | 135 | 225 | 45 | 11 |
| JC10 | 10000 | 80-320 | 365 | 250 | 520 | 120 | 12 | 258 | 160 | 230 | 50 | 16 |
