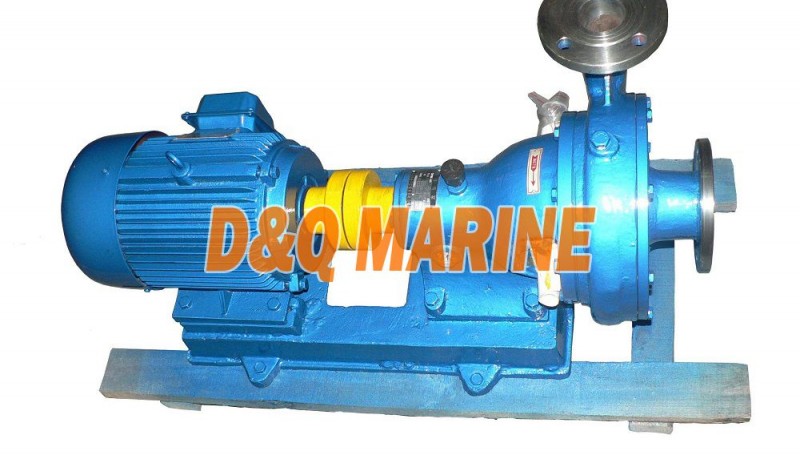

PWF Marine Crushing Pump:
PWF Marine Crushing Pump
PWF series marine pulverizing pump is the open impeller centrifugal discharge pump, which is used to pulverize and transfer the soft foul in the sanitary sewage under 85c. The maximum diameter of solid particle after circular pulverizing is within 5mm. It is also applicable to pulverize the coagulate of heavy oil under low temperature, in order to facilitate injection.
Model Explanation
For the Model 0.5PWF-15B
0.5 multiply by 10 stand for flow rate 5M3/h
P stand for Marine pump
W stand for Domestic sewage
F stand for Crushing
10 divided 100 stand for pressure head 0.1 mpa at rated displacement
B stand for The second generation advanced type(Mechanical seal)
Technical parameter:
| Model | flow rate | pressure | Motor power | Inlet pipe diameter | outlet pipe diameter | ||
| Q(m3/h) | (Mpa) | (kw) | (mm) | (mm) | |||
| 0.5PWF-8 | 5 | 0.08 | 0.75 | 50 | 32 | ||
| 0.5PWF-10 | 5 | 0.1 | 1.1 | 50 | 32 | ||
| 0.5PWF-15B | 5 | 0.15 | 1.1 | 50 | 32 | ||
| 0.5PWF-20B | 5 | 0.2 | 1.5 | 50 | 32 | ||
| 0.5PWF-25B | 5 | 0.25 | 2.2 | 50 | 32 | ||
| 0.5PWF-30B | 5 | 0.3 | 3 | 50 | 32 | ||
| 1PWF-11 | 10 | 0.11 | 1.5 | 65 | 32 | ||
| 1PWF-20B | 10 | 0.2 | 3 | 80 | 50 | ||
| 1PWF-25B | 10 | 0.25 | 4 | 65 | 50 | ||
| 1PWF-30B | 10 | 0.3 | 5.5 | 65 | 50 | ||
| 1.5PWF-20B | 15 | 0.2 | 3 | 65 | 50 | ||
| 1.5PWF-25B | 15 | 0.25 | 4 | 65 | 50 | ||
| 2PWF-11B | 20 | 0.11 | 2.2 | 65 | 40 | ||
| 2PWF-20B | 20 | 0.2 | 4 | 65 | 40 | ||
| 2PWF-30B | 20 | 0.3 | 7.5 | 65 | 50 | ||
| 3PWF-10 | 30 | 0.1 | 4 | 65 | 50 | ||
