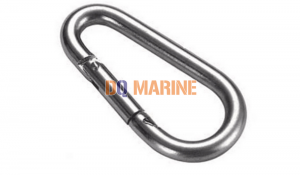

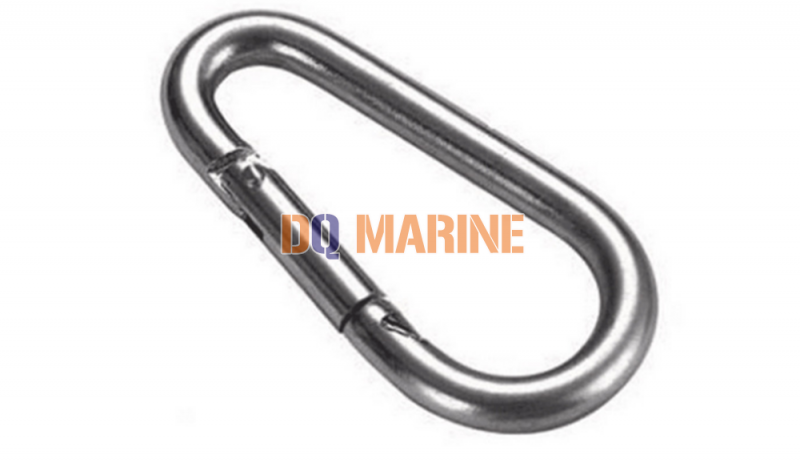

Pear Shaped Snap Hook DIN5299B
Pear Shaped Snap Hook DIN5299B Introduction
The material: AISI304/AISI316
Used for quick link and must fittings for outdoor climbing.
The Product Detail
| Size(ФA) | B | C | F | BL | WT |
| mm | mm | mm | mm | KG | KG |
| 5 | 25 | 50 | 7 | 240 | 0.017 |
| 6 | 30 | 60 | 8 | 240 | 0.025 |
| 7 | 35 | 70 | 8 | 360 | 0.044 |
| 8 | 40 | 80 | 9 | 450 | 0.066 |
| 9 | 45 | 90 | 10 | 500 | 0.093 |
| 10 | 50 | 100 | 11 | 650 | 0.13 |
| 11 | 57 | 120 | 16 | 850 | 0.185 |
| 12 | 67 | 140 | 19 | 1000 | 0.25 |
