NEK606 Instrumentation Cables P16 IFLI 250V
Applications
P16 IFLI 250 V Marine Cable are flame retardant, low smoke and halogen free, used for living, quarter and office areas.
Standards
|
IEC 60092-376 |
IEC 60092-351 |
|
IEC 60092-359 |
IEC 60332-1 |
|
IEC 60332-3-22 |
IEC 60754-1,2 |
|
IEC 61034-1,2 |
NEK 606:2004 |

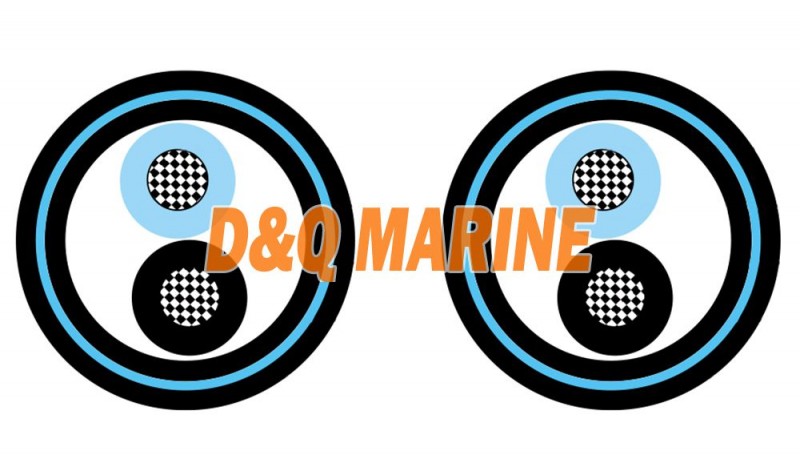

Construction
- Conductors : Circular stranded copper wire to IEC 60228 class 2.
- Insulation : XLPE
- Bedding : Halogen free thermoplastic compound.
- Metal Screen : Longitudinal aluminium tape, thickness 0.2 mm in contact with a stranded copper earth conductor.
- Outer Sheath : Halogen free thermoplastic compound, SHF1, coloured grey.
Technical data
| Nominal Cross Section Area | mm² | 2.5 |
| Maximum Resistant@20℃ | Ω/km | 7.41 |
| Continuous Current Rating@45℃2 Core | A | 26 |
| Short Circuit Current 1s | A | 360 |
| Operating Voltage | V | 250 |
Mechanical and Thermal Properties
- Bending Radius : 8×OD (during installation); 6×OD (fixed installed).
- Temperature Range : -20℃ ~ +90℃.
