NEK 606 Marine Cable P30 RFOU-HCF / TFOU-HCF 6/10(12) kV
Applications
Marine Cable P30 RFOU-HCF / TFOU-HCF 6/10(12) kV cables are fire resistant, flame retardant, low smoke and halogen free, used for emergency control, power and lighting systems that need to be operational during a 1100℃hydrocarbon fire.
Standards
|
IEC 60092-354 |
IEC 60092-351 |
|
IEC 60092-359 |
IEC 60332-1 |
|
IEC 60331-21 |
IEC 60332-3-22 |
|
IEC 60754-1,2 |
IEC 61034-1,2 |
|
NEK 606:2004 |
-kV-1.jpg)

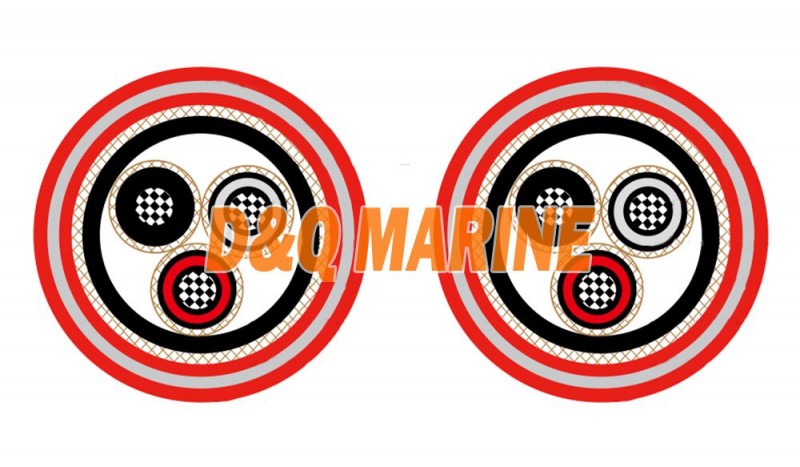

Construction
- Conductors : Circular tinned annealed stranded copper to IEC 60228 class 2.
- Conductor Screen : Semi conducting material.
- Insulation : Halogen-free EPR. XLPE can be offered as an option.
- Insulation Screen : Semi conducting material and tinned copper wire braid.
- Bedding : Halogen free compound.
- Armour : Tinned copper wire braid.
- Outer Sheath1 : Halogen free thermosetting compound, SHF2, coloured red.
- HC-fire protection : Extruded thermoplastic fire protection compound.
- Taping : Lapped glass fibre tape.
- Outer Sheath2 : Flame retardant halogen-free thermoplastic compound, SHF1, coloured red.
Technical Data:
| Construction No. of cores×Cross section | Nominal Insulation Thickness | Nominal Diameter Over Bedding | Nominal Diameter Over Sheath1 | Nominal Overall Diameter | Nominal Weight |
| (mm²) | mm | mm | mm | mm | kg/km |
| 1×70 | 3.4 | 23.5 | 30 | 62 | 5220 |
| 1×95 | 3.4 | 25.5 | 32 | 64.5 | 5900 |
| 1×120 | 3.4 | 27.5 | 34 | 66.5 | 6340 |
| 1×150 | 3.4 | 28.5 | 35 | 67.5 | 6670 |
| 1×185 | 3.4 | 30.5 | 36.5 | 69 | 7320 |
| 1×240 | 3.4 | 33 | 39 | 72 | 8250 |
| 1×300 | 3.4 | 35 | 41.5 | 74.5 | 9280 |
| 3×50 | 3.4 | 47 | 55 | 89 | 10970 |
| 3×95 | 3.4 | 54 | 62.5 | 97 | 14230 |
| 3×150 | 3.4 | 60 | 70.5 | 106 | 17400 |
Mechanical and Thermal Properties
- Bending Radius : 25×OD (during installation); 12×OD (fixed installed).
- Temperature Range : -20℃ ~ +90℃.
