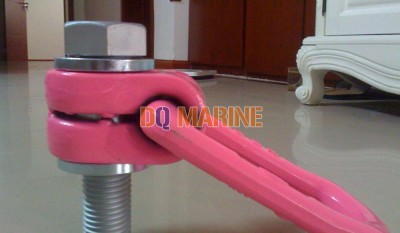

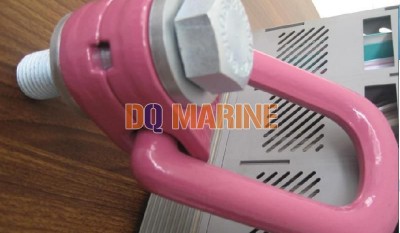

Motor Rotating Rings
Introduction
The hoisting and installation of large motor.
The rated load refers to the rings used in pairs, allowing the maximum weight when the lifting point angle 90 degrees.
The experimental load is 2 times of the load, and the breaking load is 4 times of the load.
In case of multi limb lifting sling, ring body parts can be automatically adjusted with the direction of rotation or tensile stress angle.
Product Information
Motor Rotating Rings sizes table
| Item No. | Model | Dimensions (mm) | Weight (Kg) | ||||||||
| M | B | G | D | F | C | H | L1 | EL | |||
| DJDH-08 | 8T | 30 | 98 | 159 | 31 | 199 | 102 | 79 | 135 | 55 | 7 |
| DJDH-12 | 12T | 36 | 98 | 159 | 31 | 199 | 102 | 79 | 135 | 55 | 6.7 |
