MFX300 0.6/1 kV Fire Barriers + HEPR Insulated Cables Single Core:

Basic Parameters

Cable Feature:0.6/1 kV Fire Barriers + HEPR insulated,fire resistant, flame retardant, low smoke & halogen free.

Bending Radius: 6×OD

Temperature Range: -20℃ ~ +75℃

Standards

IEC 60092-350/351/353/359, IEC 60331-21, IEC 60332-1, IEC 60332-3-22, IEC 60754-1/2, IEC 61034

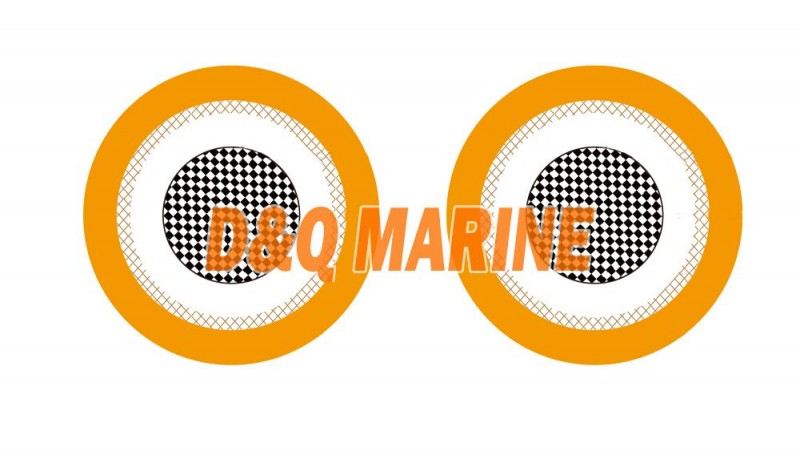

Construction

Conductors: Class 2 stranded copper conductor.

Insulation: Fire barriers + HEPR.

Overall Screen: Copper wire braid.

Outer Sheath: LSOH (SHF1).
