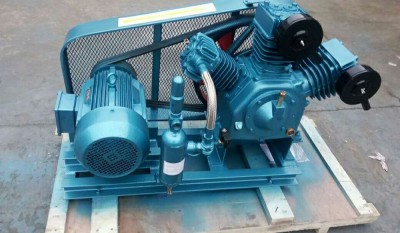

Medium Pressure Marine Air Compressor 2ZF-0.34/3-B
Category:
Marine Medium Pressure Air-cooled Series Air Compressor
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
Medium Pressure Marine Air Compressor 2ZF-0.34/3-B:
China Medium Pressure Marine Air Compressor 2ZF-0.34/3-B:

Model: 2ZF-0.34/3-B

Type: Piston,Horizontal

Rated Pressure: 3.0 Mpa

Displacement: 20.4m3/h(0.34m3/min)

Drive Mode: Belt

Marine Air Compressor 2ZF-0.34/3-B Main specifications

Model Displacement Specified Pressure Rotating Speed Motor Power Dimension(L×W×H) Weight
m3/h MPa r/min kW mm kg
2ZF-0.34/3-B 20.4 3.0 600 5.5 1000×500×800 210
